GYFTY Outdoor Aerial 48 Core Fiber Optic Cable FRP Strength Member
GYFTY Outdoor Aerial 48 Core Fiber Optic Cable FRP Strength Member
Specifications
Brand Name :
KNOFC
Model Number :
GYFTY 48 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Fiberhome / Corning
Fiber count :
2-288 core
Strength member :
FRP
Protective layer :
Water blocking tape
Outer sheath material :
HDPE
Application :
Aerial / Duct
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

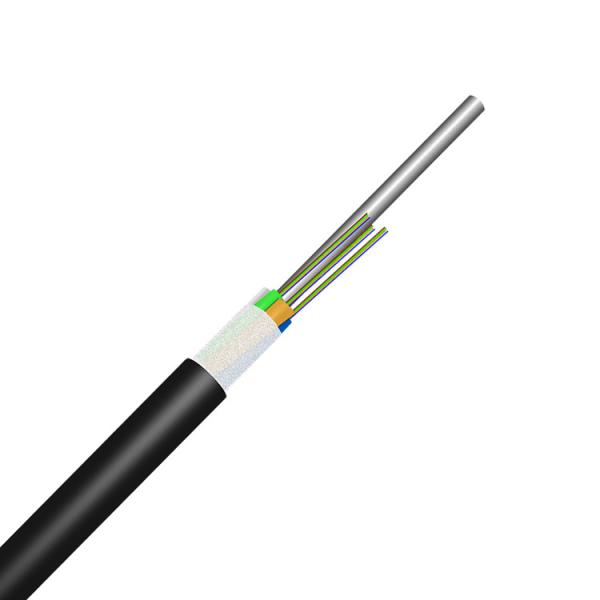

GYFTY Outdoor Aerial 48 Core Fiber Optic Cable FRP Strength Member

Description:

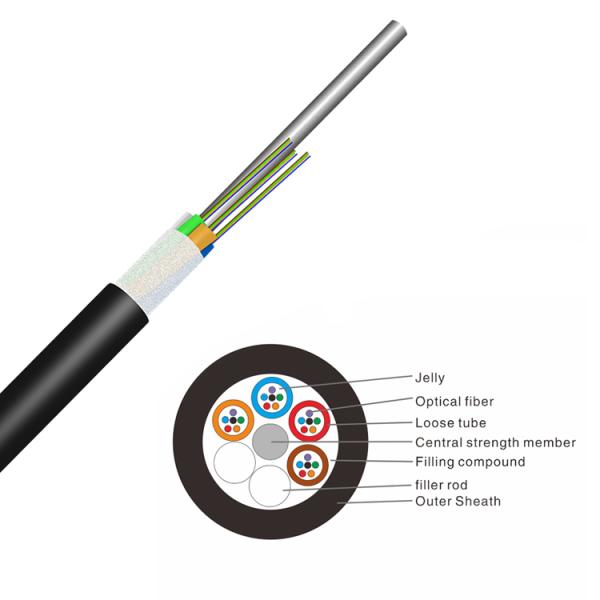

The fibers,250um,, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is wrapped with the water blocking tape to protect it from water ingress,,the cable is completed with a PE sheath.

Characteristics:

1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility.
5. The following measures are taken to ensure the cable watertight:
a.Single Fiber Reinforced Plastic as the central strength member
b. Loose tube filling compound
c. 100% cable core filling

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

No. of Fibers 2-36 38-72 74-96 98-120 122-144 146-216
Max No. of Fibers/Tube 6 12 12 12 12 12
No. of Tube(+Fillers) 6 6 8 10 12 18(2 layers)
Nominal Diameter 10 11 12 13 14 16
Cable Weight(kg/km) 90 120 140 170 190 210
Fiber Type G.652D/G.655/G.657/OM1/OM2/OM3/OM4/OM5
Max .Allowable Tension Short Term :3500N
Long Term:100N MAT:3.5KN RTS:9.0KN
Wind Speed: ≤30m/s Ics:0mm
Min.Bend Radius (mm) Dynamic:20D Static:10D (D: Cable diameter)
Temperature Range -40°C~+70°C(Transportation& Storage)
-35°C~+65°C(Installation)
-40°C~+70°C(Operation)

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYFTY-2~60 9.0 85 600/1500 300/1000 20D/10D -20~+70
GYFTY-62~72 10 95
GYFTY-74~96 11 110
GYFTY-98~120 13 125
GYFTY-122~144 15 145
