4 Core G657A 900um Tight Buffer Figure 8 Aerial Drop Cable
4 Core G657A 900um Tight Buffer Figure 8 Aerial Drop Cable
4 Core G657A 900um Tight Buffer Figure 8 Aerial Drop Cable
4 Core G657A 900um Tight Buffer Figure 8 Aerial Drop Cable
Specifications
Brand Name :
KNOFC
Model Number :
GYTC8H
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
2km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden reel
Fiber count :
2-12 Core
Fiber type :
G657A
Strength member :
Messenger wire
Outer sheath material :
LSZH - Low smoke zero halogen
Packaging :
Wooden reel
Application :
FTTH
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

Figure-8 Aerial Drop Cable 4 Core G657A 900um Tight Buffer

Description:

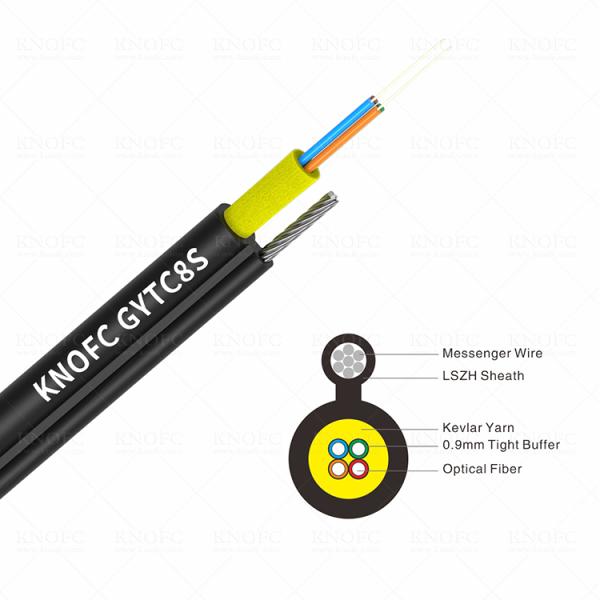

The drop cable consists of individually color coded 900µm secondary coated fibers reinforced with aramid yarns and covered with UV and flame resistant LSZH jacket.The cable cross section is figure 8 made with a messenger wire strength member.

Characteristics:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meets the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. As FTTH cable,for outdoor horizontal and vertical cabling.

Technical Data:

Item Contents Value
Central strength member Material Messenger
Central strength member Diameter 1.2mm
Outer sheath Material LSZH
Outer sheath Thickness 0.5mm~0.8mm

Cable Mechanical characteristic:

Cable type Diameter(mm) Weight
(kg/km)		 Tensile strength
Long/short term
(N)		 Bending radius
Dynamic/static
(mm)		 Storage temperature
( ℃ )
GJXFH-1~4 6.0*3.0 45 300/600 20D/10D -40~+70
GJXFH-4~12 6.5*3.8 55 300/600 20D/10D -40~+70

Main mechanical & environmental performance test:

Item Test Method Acceptance Condition
Tensile Strength
IEC 794-1-2-E1		 - Load: Short term tension
- Length of cable: about 50m		 - Fiber strain £ 0.15%
- Loss change £ 0.1 dB @1550 nm
- No fiber break and no sheath damage
Crush Test
IEC 60794-1-2-E3		 - Load: Short term crush
- Load time: 1min		 - Loss change £ 0.05dB@1550nm
- No fiber break and no sheath damage.
Impact Test
IEC 60794-1-2-E4		 - Points of impact: 3
- Times of per point: 1
- Impact energy: 5J		 - Loss change £ 0.1dB@1550nm
- No fiber break and no sheath damage
Temperature Cycling Test
YD/T901-2001-4.4.4.1		 - Temperature step:
+20℃→-40℃→+70℃ →+20℃
- Time per each step: 12 hrs
- Number of cycle: 2		 - Loss change £ 0.05 dB/km@1550 nm
- No fiber break and no sheath damage.
