G657A2 2FRP Outdoor Drop LSZH Single Core Cable
G657A2 2FRP Outdoor Drop LSZH Single Core Cable
G657A2 2FRP Outdoor Drop LSZH Single Core Cable
G657A2 2FRP Outdoor Drop LSZH Single Core Cable
Specifications
Brand Name :
KNOFC
Model Number :
GJYXFCH 1 Core
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
10km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000km/week
Packaging Details :
Wooden reel with box
Fiber count :
1core
Fiber type :
G657A2
Strengthened Messenger Wire :
Galvanized steel wire
Outer sheath material :
LSZH - Low smoke zero halogen
Packaging :
Wooden reel with box
Application :
FTTH
Description

FTTH Drop Cable Outdoor 1Core G657A2 Fiber 2FRP LSZH Jacket

Description:

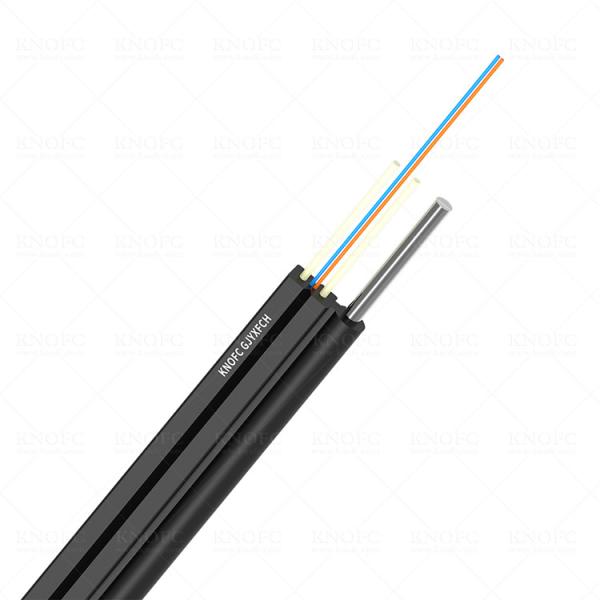

FTTH Drop Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.

Characteristics:

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication;
  • transmission property;
  • Simple structure, light weight and high practicability;
  • Low smoke, zero halogen and flame retardant sheath.

Application:

  • Adopted to outdoor distribution;
  • Suitable for aerial, pipeline laying method;
  • As FTTH cable,for outdoor horizontal and vertical cabling.

Technical Data:

Item Contents Value
Central strength member Material FRP / KFRP / steel wire
Central strength member Diameter 0.5mm*2+1.0mm
Outer sheath Material LSZH
Outer sheath Thickness 0.5mm~0.8mm

Cable Mechanical characteristic:

Cable type Diameter(mm) Weight
(kg/km)		 Tensile strength
Long/short term
(N)		 Bending radius
Dynamic/static
(mm)		 Storage temperature
( ℃ )
GJYXCH-1~4 2.0*5.0 22 300/600 20D/10D -20~+70
GJYXFCH-1~4 2.0*5.0 19 300/600 20D/10D -20~+70
