G657A SM 1 Core GJYXFCH FTTH Drop Fiber Optic Cable
G657A SM 1 Core GJYXFCH FTTH Drop Fiber Optic Cable
G657A SM 1 Core GJYXFCH FTTH Drop Fiber Optic Cable
G657A SM 1 Core GJYXFCH FTTH Drop Fiber Optic Cable
Specifications
Brand Name :
KNOFC
Model Number :
GJYXCH 1 Core
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
10km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden reel with box
Fiber count :
1core
Fiber type :
G657A2
Strengthened Messenger Wire :
Galvanized steel wire
Outer sheath material :
LSZH - Low smoke zero halogen
Packaging :
Wooden reel with box
Application :
FTTH
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

FTTH Drop Cable G657A SM 1 Core GJYXFCH Fiber Drop Cable

Description:

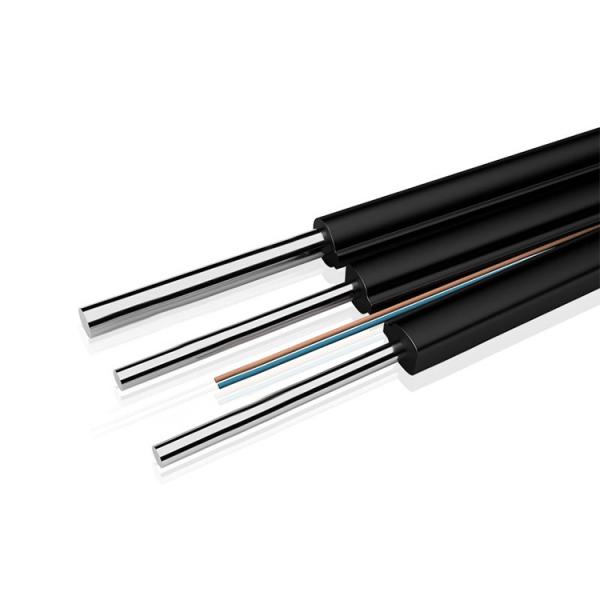

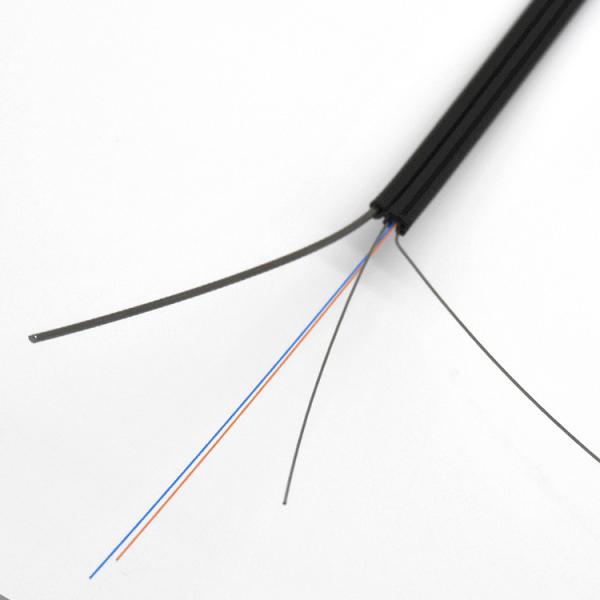

FTTH Drop Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.

Characteristics:

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

2. Simple structure, light weight and high practicability;

3. Low smoke, zero halogen and flame retardant sheath.

Application:

1. Adopted to outdoor distribution;

2. Suitable for aerial, pipeline laying method;

3. As FTTH cable,for outdoor horizontal and vertical cabling.

Technical Data:

Item Contents Value
Central strength member Material FRP / KFRP / steel wire
Central strength member Diameter 0.5mm*2+1.0mm
Outer sheath Material LSZH
Outer sheath Thickness 0.5mm~0.8mm

Cable Mechanical characteristic:

Cable type Diameter(mm) Weight
(kg/km)		 Tensile strength
Long/short term
(N)		 Bending radius
Dynamic/static
(mm)		 Storage temperature
( ℃ )
GJYXCH-1~2 2.0*5.0 22 300/600 20D/10D -20~+70
GJYXCH-2~4 2.0*5.0 19 300/600 20D/10D -20~+70

Mechanical requirements and methods of fiber cable:

Tensile strength 10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33%
Crush 2200N/100mm, conform to IEC 794-1-E3
Impact Conform to IEC 794-1-E4
Repeated bending Conform to IEC 794-1-E6
Torsion Conform to IEC 794-1-E7
Flexing Conform to IEC 794-1-E8
Kink Conform to IEC 794-1-E10
Cable bend Conform to IEC 794-1-E11
Vibration Conform to IEC 794-1
Water penetration Conform to IEC 794-1-F5B
Abrasion Conform to IEC 794-1-E2
Temperature cycling test Conform to IEC 794-1-F1
Dielectric strength of outer jacket Conform to ITU-T Rec.K25
