Multimode Duplex Fiber Optic Cable
Multimode Duplex Fiber Optic Cable
Multimode Duplex Fiber Optic Cable
Multimode Duplex Fiber Optic Cable
Specifications
Brand Name :
KNOFC
Model Number :
GJSJBV 2 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
600000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
SM / MM
Fiber brand :
YOFC / Fiberhome / Corning
Fiber count :
2 Core
Cable OD :
2.0 mm*4.0 mm
Protect layer :
Kevlar yarn
Jacket material :
PVC / LSZH
Armored :
Metal Tube
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

GJSJBV Indoor Armored Duplex Fiber Fiber Cable Multimode

Description:

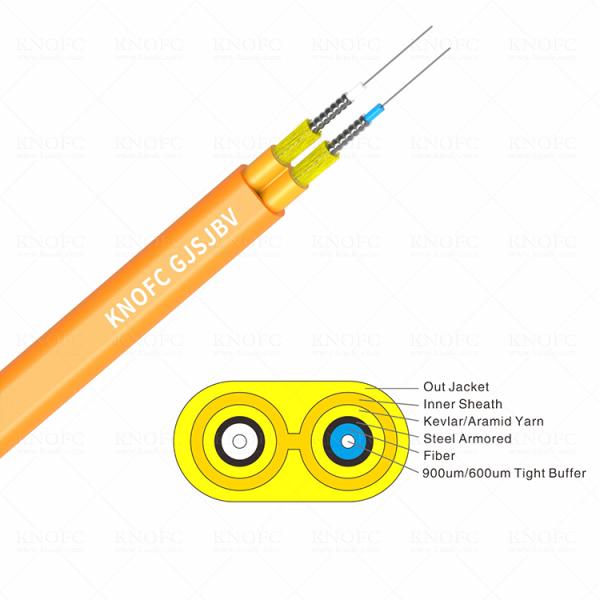

Duplex zipcord armored cable use 0.9mm or 0.6mm flame-retardant tight buffer fiber as optical communication medium.The tight buffer fiber wrapped with a layer of steel wire , and aramid yarn as strength member units,such unit is extruded with a layer of PVC or LSZH material as inner jacket.Then the cable is completed with a layer of flat PVC or LSZH (Low smoke,Zero halogen,Flame-retardant) or TPU jacket as out sheath .

Features:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meet the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Application:

1. Used in pigtails and patch cords;
2. Used in optical connections in optical communication equipment rooms and optical distribution frames;
3. Used in optical connections in optical apparatus and equipments.

Technical Parameters:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GJSJBV-1 2.0*4.1 21 160/300 300/1000 20D/10D -40~+70
GJSJBV-1 2.8*5.7 35
