GJSJV Simplex SM G652D G657A Armored Indoor Fiber Cable
GJSJV Simplex SM G652D G657A Armored Indoor Fiber Cable
GJSJV Simplex SM G652D G657A Armored Indoor Fiber Cable
GJSJV Simplex SM G652D G657A Armored Indoor Fiber Cable
Specifications
Brand Name :
KNOFC
Model Number :
GJSJV 1 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
600000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
SM / MM
Fiber brand :
YOFC / Fiberhome / Corning
Fiber count :
1 Core
Cable OD :
2.0 mm / 3.0 mm
Protect layer :
Kevlar yarn
Jacket material :
PVC / LSZH
Armored :
Metal Tube
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

GJSJV Indoor Armored Fiber Cable Simplex Fiber SM G652D G657A

Description:

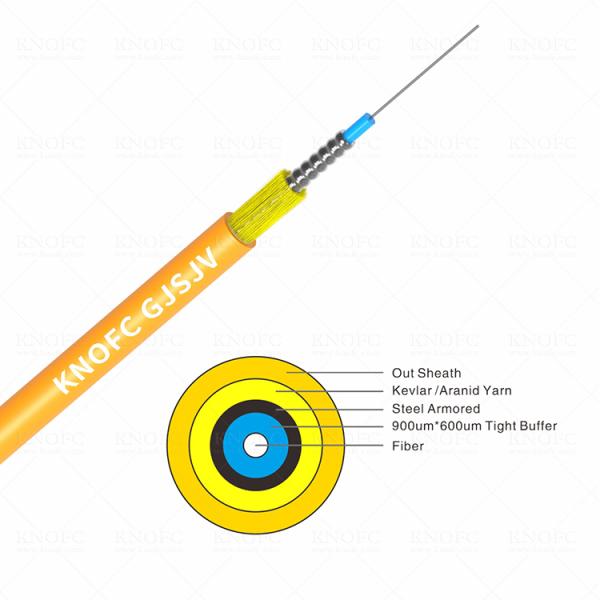

GJSJV Simplex Armored Round Cable use 600um&900um tight buffer fiber, steel tube protect, reinforcing steel-wire braiding (kevlar /aramid yarn), flame-retardant jacket. High indentation strength, high tensile strength, gopher protected, small diameter, flexibility and easy bend.

Features:

1. Good mechanical and environmental characteristics;
2. Flame retardant characteristics meets the requirements of relevant standards;
3. The mechanical characteristics meet the requirements of relevant standards;
4. Soft, flexible, easy to splice, and with big capacity data transmission;
5. Meet various requirements of market and clients.

Application:

1. Used in pigtails and patch cords;
2. Used in optical connections in optical communication equipment rooms and optical distribution frames;
3. Used in optical connections in optical apparatus and equipments.

Technical Parameters:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GJSJV-1 2.0 15 80/150 300/1000 20D/10D -40~+70
GJSJV-1 3.0 19

Mechanical requirements and methods of fiber cable:

Tensile strength 10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33%
Crush 2200N/100mm, conform to IEC 794-1-E3
Impact Conform to IEC 794-1-E4
Repeated bending Conform to IEC 794-1-E6
Torsion Conform to IEC 794-1-E7
Flexing Conform to IEC 794-1-E8
Kink Conform to IEC 794-1-E10
Cable bend Conform to IEC 794-1-E11
Vibration Conform to IEC 794-1
Water penetration Conform to IEC 794-1-F5B
Abrasion Conform to IEC 794-1-E2
Temperature cycling test Conform to IEC 794-1-F1
Dielectric strength of outer jacket Conform to ITU-T Rec.K25
