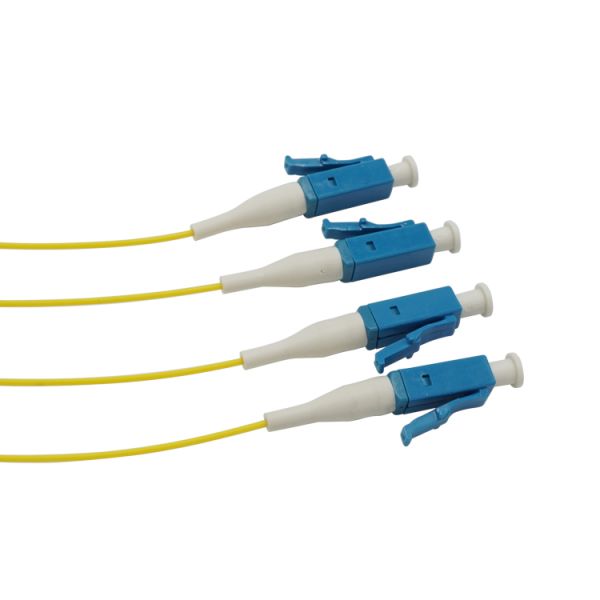

Single Mode 1.5M Simplex LC UPC 0.9MM Fiber Optic Pigtail
Single Mode 1.5M Simplex LC UPC 0.9MM Fiber Optic Pigtail
Specifications
Brand Name :
KNOFC or OEM
Model Number :
Pigtail LC/UPC
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000/week
Packaging Details :
bag
Fiber type :
Single mode 9/125
Connector type :
LC/UPC
Length :
1M or Customized
Cable color :
White or Yellow
Cable diameter :
0.9mm
Insertion loss :
≤0.3dB
Operating Temperature :
-20°C to+50°C
Description

LC UPC 0.9MM fiber optic Pigtail Single mode 1.5M Simplex

Description:

The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with connectors fixed on one ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. According to the transmission medium, it divides Single Mode and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.

Features:

1. Integrated spring-loaded shutter
2. Simplex and duplex assemblies available
3. Singlemode and multimode fiber optic cable
4. PC and APC polishing available
5. Hybrid patch cords available upon request
6. Fan out available

Application:
1. Telecommunication networks
2. Building access
3. Cabling system. ODF
4. CATV
5. FTTX applications

Characteristics:

1. Low insertion loss, high return loss
2. Good compatibility
3. High precision of mechanical dimensions
4. High reliability & stability
5. PC, APC, UPC optional, cable length optional
6. Options available for cable colors

Specification:

Parameter Unit Mode Type PC UPC APC
Insertion Loss dB SM ≤0.3 ≤0.3 ≤0.3
Insertion Loss dB MM ≤0.3 ≤0.3 -----
Return Loss dB SM ≥50 ≥50 ≥60
Return Loss dB MM ≥35 ≥35 -----
Fiber cable Material PVC, LSZH
Fiber cable Diameter 0.9mm, 2.0mm, 3.0mm
Connector type SC, LC. ST. FC
Repeatability dB Additional loss<0.1db,return loss< 5 dB
Interchangeability dB Additional loss<0.1db,return loss< 5 dB
Connection times times >1000
Operating Temperature ℃ -20℃- +70℃
Storage Temperature ℃ -20℃- +70℃

Single Mode 1.5M Simplex LC UPC 0.9MM Fiber Optic Pigtail
