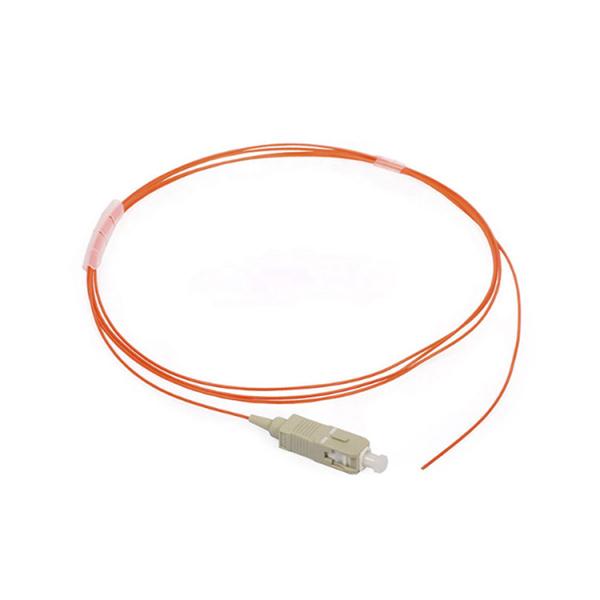

1 Fiber 1M 0.9mm Multimode SC Fiber Optic Pigtail
1 Fiber 1M 0.9mm Multimode SC Fiber Optic Pigtail
1 Fiber 1M 0.9mm Multimode SC Fiber Optic Pigtail
1 Fiber 1M 0.9mm Multimode SC Fiber Optic Pigtail
Specifications
Brand Name :
KNOFC or OEM
Model Number :
Pigtail SC/UPC
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000/week
Packaging Details :
bag
Fiber type :
Single mode 9/125
Connector type :
SC/UPC
Length :
1M or Customized
Cable color :
White or Yellow
Cable diameter :
0.9mm
Insertion loss :
≤0.3dB
Operating Temperature :
-20°C to+50°C
Description

Fiber Optic Pigtail SC/UPC 1M 0.9mm Singlemode Simplex

Description:

The optical Fiber Connectors (Commonly we call Patch Cords) is a length of optical cable with connectors fixed on one ends to realize the optical path active connection. Pigtail is a length fiber cable with only one connector fixed on one end. According to the transmission medium, it divides Single Mode and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.

Features:

  • Good durability.
  • Good exchangeability.
  • High temperature stability.
  • Low insertion loss and back reflection loss.
  • Superior Quality Standard PC/UPC/APC Polishin.

Application:

  • FTTH, LAN, Test equipment, Military industry.
  • Outside plant.
  • Premise networks.
  • Aerial distribution.
  • Measuring equipments.
  • Fiber optic communication system.
  • Optical active component and equipment.

Specification:

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/OFNR/PVC
Connector Type FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Loss (dB) ≤0.25dB ≤0.3dB
TIA/EIA-455-107 (PC/UPC/APC) (PC/UPC)
Return Loss (dB) ≥50dB(PC/UPC) ≥40dB(PC/UPC)
TIA/EIA-455-107 ≥60dB(APC)
Exchange-ability ≤0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature(℃) -30 ~ +70
Storage Temperature(℃) -40 ~ +85
Package 1 pieces/bag

1 Fiber 1M 0.9mm Multimode SC Fiber Optic Pigtail

Product tags

om3 sc fiber optic pigtail

,

sc fiber optical pigtail 0.9mm

,

900um fiber optic pigtail
