Outdoor GYTC8S Overhead 48 Core Single Mode Fiber Optic Cable
Outdoor GYTC8S Overhead 48 Core Single Mode Fiber Optic Cable
Specifications
Brand Name :
KNOFC
Model Number :
GYTC8S 48 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Fiberhome / Corning
Fiber count :
2-288 core
Central Strength member :
Steel wire
Protective layer :
Corrugated steel tape
Outer sheath material :
HDPE
Installation :
Self- supporting Aerial
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

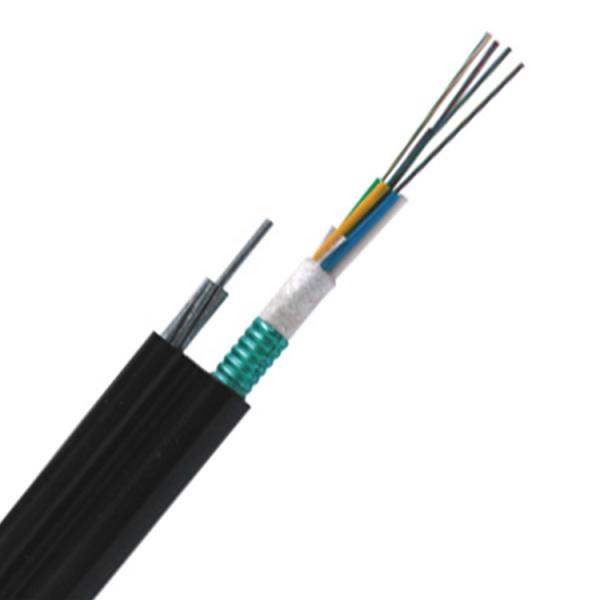

Overhead 48 core single mode outdoor fiber optical Cable GYTC8S

Description:

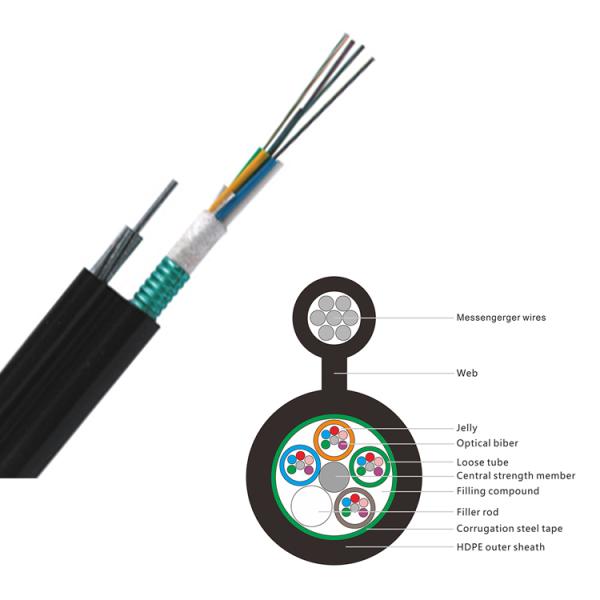

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.

Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
◆ The following measures are taken to ensure the cable watertight:
➢ Steel wire used as the central strength member
➢ Loose tube filling compound
➢ 100% cable core filling
➢ PSP enhancing moisture-proof
➢ Water-blocking material

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial.
3. Long distance and local area network communication.

Cable Mechanical Characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYTC8S-2~36 8.6*15 140 600/1500 300/1000 20D/10D -20~+70
GYTC8S-38~72 10.5*16.9 190
GYTC8S-74~96 12*19 250
GYTC8S-98~120 13*20 270
GYTC8S-122~144 15*22 305

Outdoor GYTC8S Overhead 48 Core Single Mode Fiber Optic Cable
