GYXTW Loose Tube 12 Core SM Two Steel Wire Optic Fiber Cable
GYXTW Loose Tube 12 Core SM Two Steel Wire Optic Fiber Cable
GYXTW Loose Tube 12 Core SM Two Steel Wire Optic Fiber Cable
GYXTW Loose Tube 12 Core SM Two Steel Wire Optic Fiber Cable
Specifications
Brand Name :
KNOFC
Model Number :
GYXTW 12 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Corning or as your request
Fiber count :
2-24 core
Strength member :
Steel wire
Outer sheath material :
HDPE
Application :
Aerial / Duct
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

GYXTW Cable Loose Tube 12 Core SM Armoured Two Steel Wire Fiber Cable

Description:

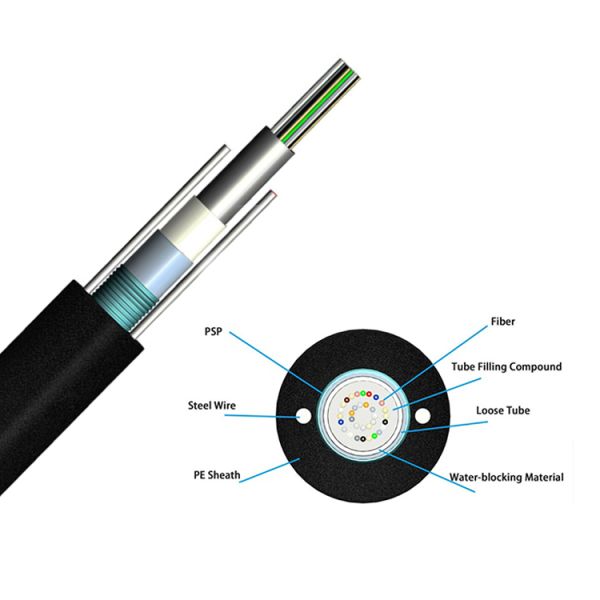

The fibers are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics:

1. Good mechanical and temperature performance.

2. High strength loose tube that is hydrolysis resistant.

3. Special tube filling compound ensure a critical protection of fiber.

4. Crush resistance and flexibility.

5. PSP enhancing moisture-proof.

6. Two parallel steel wires ensure tensile strength.

7. Small diameter, light weight and friendly installation.

8. Long delivery length.

Application:

1. Adopted to outdoor distribution.

2. Suitable for aerial, pipeline laying method.

3. Long distance and local area network communication.

Optical Fiber Characteristic:

Fiber Type G.652D,125.0+-1.0μm
Mode Field Diameter 9.2+-0.2μm at 1310 nm
Cladding Diameter 125+-1μm
Cladding Non-Circularity <=1%
Coating Diameter 245+-10μm
Attenuation Coefficient <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength 1300-1322nm
PMD Coefficient <=0.2ps/√km

Cable Mechanical Characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYXTW-2~24 8 70 600/1500 300/1000 20D/10D -40~+70

GYXTW Loose Tube 12 Core SM Two Steel Wire Optic Fiber Cable
