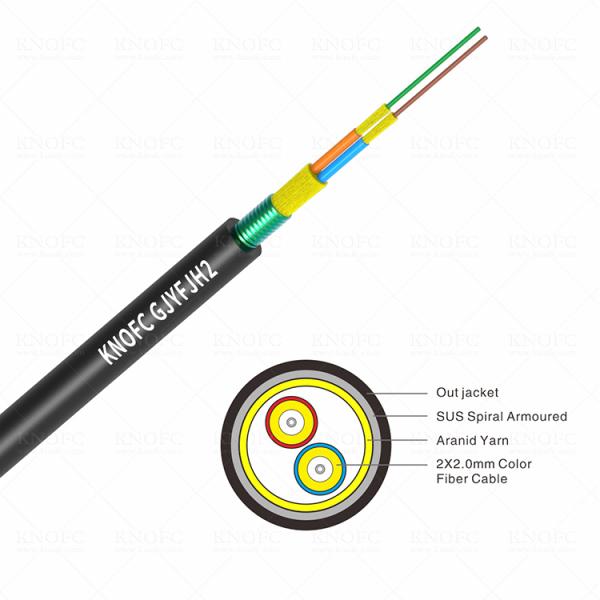

2 Core GJYFJH2 OS1 Fiber Optic Cable FTTA Armored Optic Fiber Cable
2 Core GJYFJH2 OS1 Fiber Optic Cable FTTA Armored Optic Fiber Cable
2 Core GJYFJH2 OS1 Fiber Optic Cable FTTA Armored Optic Fiber Cable
2 Core GJYFJH2 OS1 Fiber Optic Cable FTTA Armored Optic Fiber Cable
Specifications
Brand Name :
KNOFC
Model Number :
GJYFJH2 2 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Fiberhome / Corning
Fiber count :
2-12 core
Protect layer :
Kevlar yarn
Outer sheath material :
PE, PVC, LSZH, TPU
Application :
FTTX
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Armored material :
SUS Spiral Armoured
Description

FTTA Armored Optic Fiber Cable 2 Core OS1 Fiber GJYFJH2 Cable

Descrition:

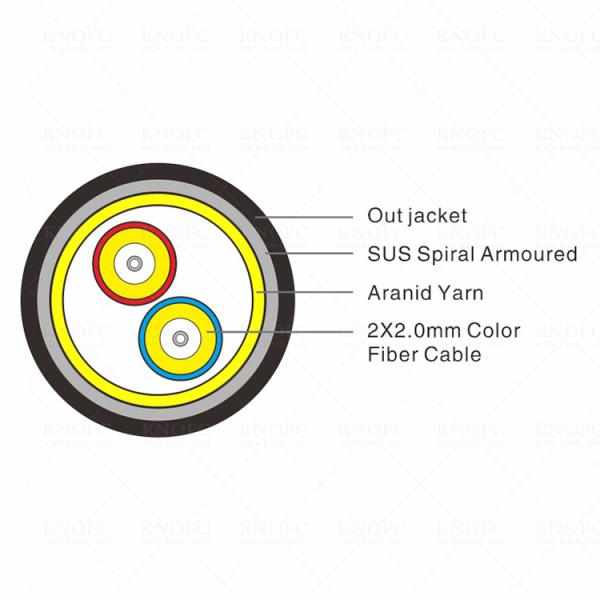

GJYFJH2 Indoor/ Outdoor Cable used as optical transmission medium with 900um subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, and the cable is completed with outside jacket,(PVC,LSZH,TPU,PE or other material according to customer's requirements).

Features:

1. Good mechanical and temperature characteristics.
2. Good lateral compression and flexibility.
3. Small diameter, light weight, easy to connect, and support large capacity data transmission.
4. Outer jacket material has the advantages of water proof, flame retardant, environmental protection.

5. Mini armored layer used to decrease the outer diameter and cable weight, also convenient for laying and splice.

Application:

1. Remote base station communication such as RRU or BBU
2. Smart substation and CATV Outdoor application.
3. Emergency access to optical fiber communication.
4. Used in FTTX, from residence to datat center and cabling level and vertical, also usedin FTTH cable.

Technical parameters:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GJYFJH2 2-4 5.0 30 100/300 300/1000 20D/10D -40~+70
GJYFJH2 6-12 7.0 50

Packing and Reel Length:
1. Strandard wooden drum with protection.
2. Strandard reel length: 2km/reel 3km/reel, other length is also available.
