96 Core Non Metallic Overhead Duct GYFTY Fiber Optic Cable
96 Core Non Metallic Overhead Duct GYFTY Fiber Optic Cable
96 Core Non Metallic Overhead Duct GYFTY Fiber Optic Cable
96 Core Non Metallic Overhead Duct GYFTY Fiber Optic Cable
Specifications
Brand Name :
KNOFC
Model Number :
GYFTY 96 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Fiberhome / Corning
Fiber count :
2-288 core
Strength member :
FRP
Protective layer :
Water blocking tape
Outer sheath material :
HDPE
Application :
Aerial / Duct
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

GYFTY Cable Fibre Optic 96 Core Non-metallic Use for Overhead Duct

Description:

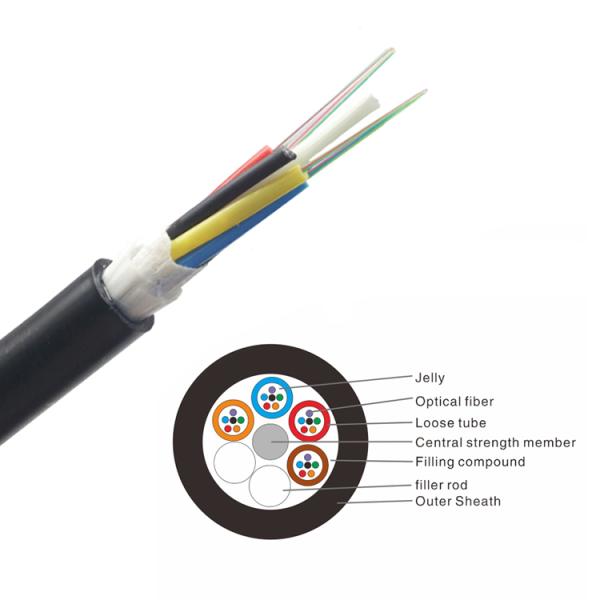

The fibers,250um,, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is wrapped with the water blocking tape to protect it from water ingress,,the cable is completed with a PE sheath.

Characteristics:

1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility.
5. The following measures are taken to ensure the cable watertight:
a.Single Fiber Reinforced Plastic as the central strength member
b. Loose tube filling compound
c. 100% cable core filling

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYFTY-2~60 9.0 85 600/1500 300/1000 20D/10D -20~+70
GYFTY-62~72 10 95
GYFTY-74~96 11 110
GYFTY-98~120 13 125
GYFTY-122~144 15 145

96 Core Non Metallic Overhead Duct GYFTY Fiber Optic Cable
