72 Core Armored Fiber Cable GYTS Use on Underground Outdoor
72 Core Armored Fiber Cable GYTS Use on Underground Outdoor
Specifications
Brand Name :
KNOFC or OEM
Model Number :
GYTS 72 core
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Supply Ability :
300km/week
Packaging Details :
Wooden Drum
Fiber type :
SM G652D
Fiber count :
2-288 cores
Outer sheath of material :
HDPE
Strength member :
Steel wire
Armored layer :
Corrugated steel tape
Application :
Duct/Aerial
Description

72 Core Armored Fiber Cable GYTS Use on Underground Outdoor

Description:

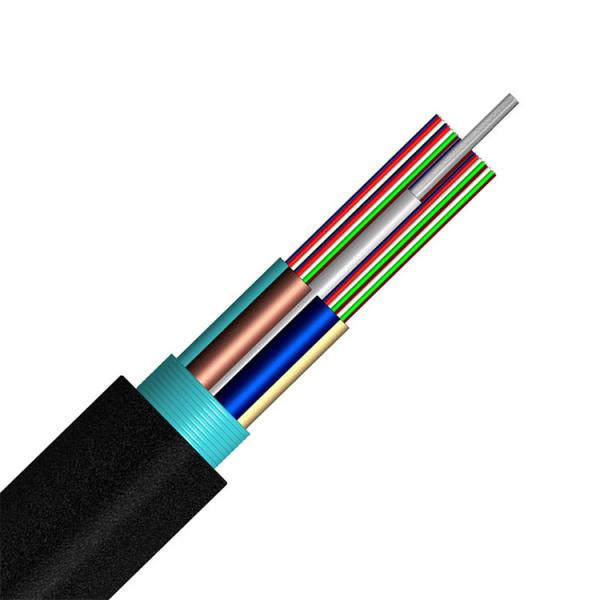

The fibers,250um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress, the cable is completed with the HDPE sheath.

Characteristics:

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • Specially designed compact structure is good at preventing loose tubes from shrinking
  • PE sheath protects cable from ultraviolet radiation

Feature:

  • Steel wire used as the central strength member
  • Loose tube filling compound
  • 100% cable core filling
  • PSP enhancing moisture-proof

Application:

  1. Adopted to outdoor distribution
  2. Suitable for aerial, pipeline laying method
  3. Long distance and local area network communication

Optical Fiber Characteristic:

Fiber Type G.652D,125.0+-1.0μm
Mode Field Diameter 9.2+-0.2μm at 1310 nm
Cladding Diameter 125+-1μm
Cladding Non-Circularity <=1%
Coating Diameter 245+-10μm
Attenuation Coefficient <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength 1300-1322nm
PMD Coefficient <=0.2ps/√km

Cable Mechanical characteristic:

Cable type Diameter(mm) Weight
(kg/km) 		Tensile strength
Long/short term
(N) 		Bending radius
Dynamic/static
(mm)		 Storage temperature
( ℃ )
GYTS-2~60 9.5 105 600/1500 20D/10D -20~+70
GYTS-62~72 10.5 130 600/1500 20D/10D -20~+70
GYTS-74~96 12.0 160 600/1500 20D/10D -20~+70
GYTS-98~120 14.0 220 600/1500 20D/10D -20~+70
GYTS-122~144 16.0 280 600/1500 20D/10D -20~+70
GYTS-146~288 20.0 340 600/1500 20D/10D -20~+70
