GYTA53 Armoured Double Jacket 24Core Rodent Resistant Cable Optic Fiber
GYTA53 Armoured Double Jacket 24Core Rodent Resistant Cable Optic Fiber
Specifications
Brand Name :
KNOFC
Model Number :
GYTA53 24 Core
Certification :
ISO9001/CE
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000M/Week
Delivery Time :
8-10 working days
Packaging Details :
Wooden drum
Fiber type :
G652D or as your request
Fiber brand :
YOFC / Fiberhome / Corning
Fiber count :
2-288 core
Central Strength member :
Steel wire
Protective layer :
Corrugated steel tape
Outer sheath material :
HDPE
Application :
Duct / Underground/Aerial
Life expectancy :
more than 30 years
Operating Temperature :
-40°C to+70°C
Description

GYTA53 Armoured Double Jacket 24Core Rodent Resistant Cable Optic Fiber

Description:

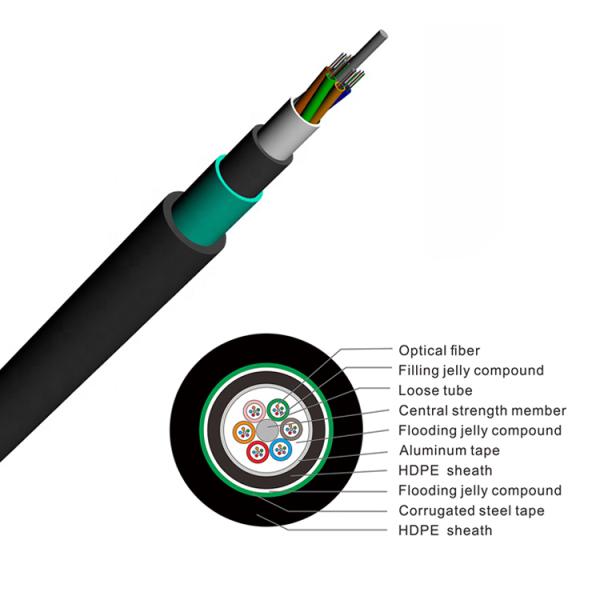

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count,locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core.which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ Crush resistance and flexibility.
◆ The following measures are taken to ensure the cable watertight:
➢ Steel wire used as the central strength member
➢ Loose tube filling compound
➢ 100% cable core filling
➢ PSP enhancing moisture-proof
➢ APL moisture barrier

➢ Water-blocking material

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, duct and direct buried.
3. Long distance and local area network communication.

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term (N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYTA53-2~60 10.0 140 600/1500 300/1000 20D/10D -20~+70
GYTA53-62~72 12.0 170
GYTA53-74~96 14.0 210
GYTA53-98~120 15.0 230
GYTA53-122~144 16.0 245

GYTA53 Armoured Double Jacket 24Core Rodent Resistant Cable Optic Fiber
