Specifications
Model Number :
LM-2 series
Type :
Fiber Optic Multimeter
Place of Origin :
Shanghai, China
Brand Name :
LinkU
Use :
FTTx
Warranty Time :
3 Years
Network :
ODN
Packaging Details :
carton package
Port :
Shanghai/Ningbo
Supply Ability :
500 Unit/Units per Month
MOQ :
10 units
Price :
$48.00 - $88.00/units
Description
Products Description

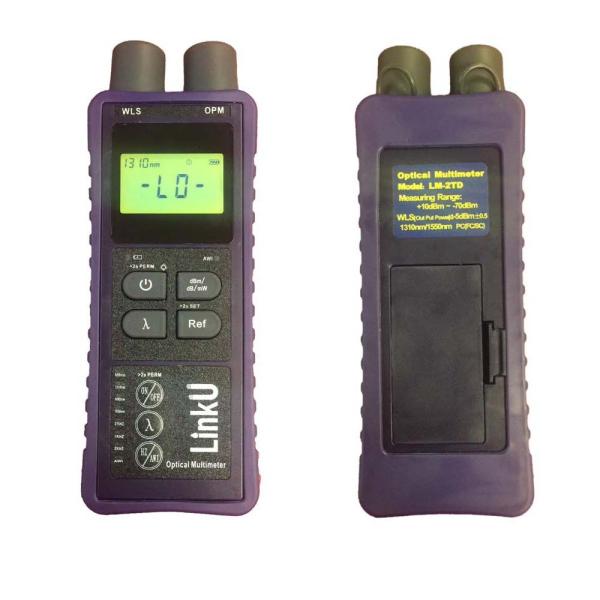

Description: LM series Optical Multimeter, integrates an optical power meter, a laser source and a visual locator, is an ideal instrument used to test power, loss, continuity and faults on fiber optic systems.

Features: ❖ Auto-wavelengths recognition. ❖ Auto power-off, Back-light. ❖ Integrated with visual fault locator (Optional）.

Product Paramenters
Model
LM-2 Series
Calibration Wavelength
850/1300/1310/1490/1550/1625nm
Connector
interchangeable FC/SC (ST optional)
Display Units
dB/dBm/mW/uW
Display Precision
0.01dB
Accuracy
±5%±1nW
Wavelength Recognition
1310/1490/1550 (input power≥-40dBm)
Tone Detection
270Hz/1KHz/2KHz (input power≥-40dBm)
Power Meter
LM-2TD / -2TP / -2TQ : -70 to +10dBm
LM-2CD/ -2CP / -2CQ : +26~-50dBm
Laser Source
LM-2TD / -2CD : 1310/1550 nm
LM-2TP / -2CP : 1310/1490/1550 nm
LM-2TQ / -2CQ : 850/1300/1310/1550 nm
Connector
fixed FC/PC (interchangeable FC/SC/ST customized)
Modulation Frequencies
270Hz/1KHz/2KHz
Output Power
-5dBm±0.5dB
Output Stability
±0.1dB@1310/1550nm; ±0.15dB@1490nm
Wavelength
650nm ±10nm
Output Power
1mw
Power Supply
2 * AA Batteries; AC/DC Adapter
Operating Temperature
-10℃~+50℃
Storage Temperature
-20℃~+70℃
Dimension &. Weight
160×58×32 mm (L×W×H)；160g
Standard Accessories:
FC/PC adapter, carrying bag, Manual

If you have special needs of customized products, please contact us.
