① OFNP/OFNR flame retardant rating

② Provides higher density and larger space

③ High-quality fibers and connectors ensure stable signal transmission

④ 100% 3D instrument testing to guarantee high quality

⑤ Easy installation and convenient connection

-

-

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

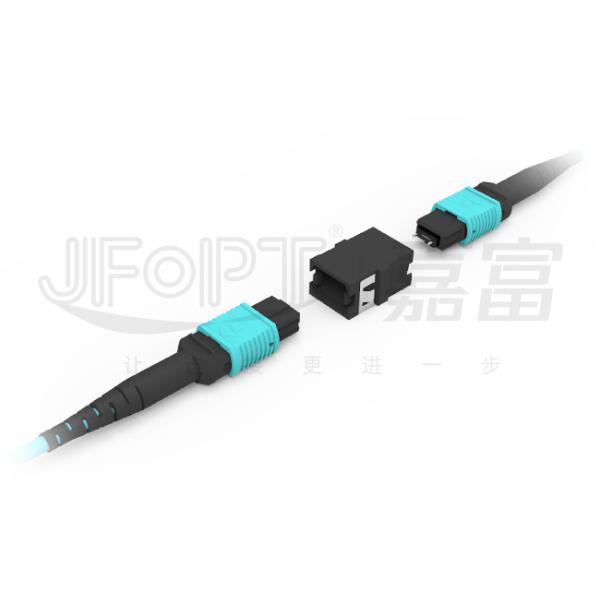

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

Male / Female

Male : with Pin Female : without Pin

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A

Item

Parameter

Fiber Type

G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5

Fiber Count

24

48

72

96

144

288

Sub-cable

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

12 cores / unit

24 cores / unit

Central Strength Member

/

/

FRP

Sub- cable Outer Diameter

3.0mm

Sub-cable Jacket Material

PVC/LSZH

Sub-cable Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Sub-cable Strength Member

Aramid yarn

Outer Jacket Diameter

9.5mm

9.5mm

11.5mm

13.5mm

17.0mm

Outer Jacket Material

PVC/LSZH

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-Term)

300N

200N

400N

800N

1600N

Tensile Strength (Short-Term)

600N

400N

1000N

1500N

3000N

Crush Resistance (Long-Term)

300N/10cm

Crush Resistance (Short-Term)

1000N/10cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

OFN / OFNR / OFNP

MPO Boot Type

Type

Specification

Applicable cable OD


Drawings

Round boot

3.0 boot L=33mm

3.0/3.2

3.0 boot L=17mm

3.0/3.2

Square boot

3.0 boot L=25mm

3.0/3.2

Push-pull tab

Universal for all boots

Universal

MPO Connector

Single mode

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

Multimode

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

Violet

-

Reference color number PANTONE 7641C

Thickened anti-static bag

Thickened carton

Professionalism:

JFOPT has been focusing on the production of MPO jumpers for over 10 years, with professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), can produce high-quality and high-performance MPO jumpers.

Manufacturing capacity:

JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands.

Quality Control:

JFOPT implements strict quality control measures at every stage, from raw material procurement to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality.

Standard Development:

JFOPT can develop and strictly adhere to MPO jumper production standards based on customer requirements to ensure product consistency and performance stability.

Technological Innovation:

JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performing MPO jumpers.

Service and Technical Support:

JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.
