① A/B Polarity Reversal

② No Tools Required for Reversal

③No Need to Remove the Housing during Reversal

④Flexible Cabling, Reducing On-Site Construction Complexity

⑤Single-Mode Options: G657A1/G657A2; Multi-Mode Options: OM3/OM4/OM5

-

-

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MPO Connector

SM Standard

0.2dB

0.75dB

APC≥60dB
PC≥50dB

SM Low Loss

0.1dB

0.35dB

MM Standard

0.2dB

0.6dB

PC≥25dB

MM Low Loss

0.1dB

0.35dB

Male/Female

Male: with Pin, Female: without Pin

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A

Item

Parameter

Fiber Type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber Count

Optional 8/12/16/24

Strength Member

Aramid yarn

Outer Jacket Material

Optional LSZH/PVC/TPU

Outer Jacket Diameter

3.0mm

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-term)

80N

Tensile Strength (Short-term)

150N

Crush Strength (Long-term)

100N/cm

Crush Strength (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional OFN/OFNR/OFNP

Item

Parameter

Fiber Type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber Count

2~12

Strength Member

Aramid yarn

Outer Jacket Material

Optional LSZH/PVC/TPU

Outer Jacket Diameter

2.5x5.0mm

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-term)

100N

Tensile Strength (Short-term)

200N

Crush Strength (Long-term)

200N/cm

Crush Strength (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

50mm

Minimum Bending Radius (Static)

30mm

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional OFN/OFNR/OFNP

MPO connector

SM

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

MM

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

Violet

-

Reference color number PANTONE 7641C

Thickened anti-static bag

Thickened carton

Specialization:

JFOPT has focused on the production of MPO jumpers for more than 10 years. With professional technology and a full set of first-class brand equipment (SUMIX/JRG/OPTOTEST), it can produce high-quality, high-performance MPO jumpers.

Manufacturing capacity:

JFOPT has 5 MPO production lines, allowing the rapid and efficient production of a large quantity of MPO trunk cables to meet customer demands.

Quality Control:

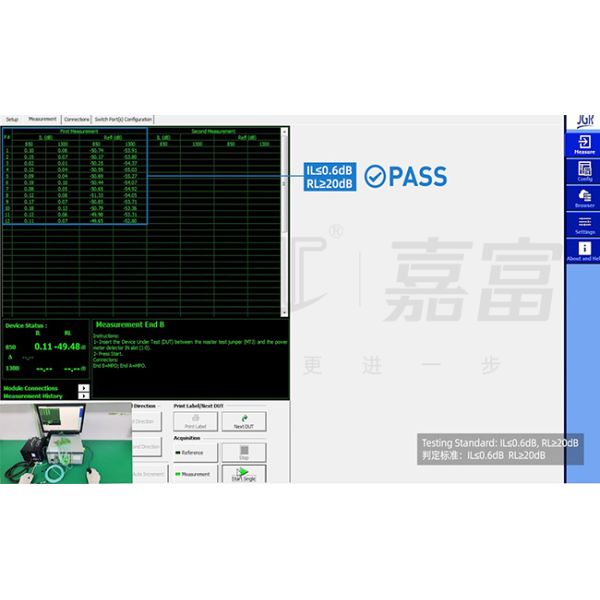

JFOPT implements strict quality control measures at every stage, from raw material procurement to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/IL&RLtesting/end-face inspection to ensure product quality.

Setting standards:

JFOPT can formulate and strictly implement MPO jumper production standards according to user needs to ensure product consistency and performance stability.

Technological innovation:

JFOPT focuses on technological innovation and has a professional R&D team to continuously develop MPO jumpers with more advanced functions and higher performance.

Service and Technical Support:

JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendation, after-sales maintenance, etc., to meet customer needs and ensure customer satisfaction.
