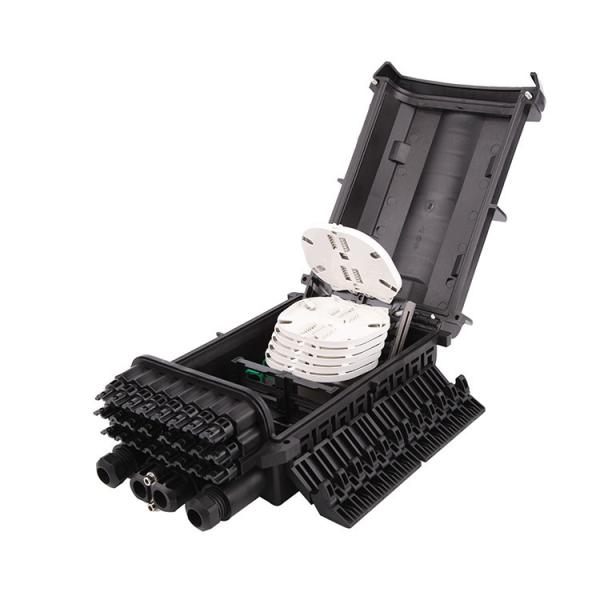

Black Fiber Optic Joint Closure Box Waterproof FTTH Joint Box 2 Inlet 24 Out
Black Fiber Optic Joint Closure Box Waterproof FTTH Joint Box 2 Inlet 24 Out
Black Fiber Optic Joint Closure Box Waterproof FTTH Joint Box 2 Inlet 24 Out
Black Fiber Optic Joint Closure Box Waterproof FTTH Joint Box 2 Inlet 24 Out
Black Fiber Optic Joint Closure Box Waterproof FTTH Joint Box 2 Inlet 24 Out
Black Fiber Optic Joint Closure Box Waterproof FTTH Joint Box 2 Inlet 24 Out
Black Fiber Optic Joint Closure Box Waterproof FTTH Joint Box 2 Inlet 24 Out
Black Fiber Optic Joint Closure Box Waterproof FTTH Joint Box 2 Inlet 24 Out
Black Fiber Optic Joint Closure Box Waterproof FTTH Joint Box 2 Inlet 24 Out
Black Fiber Optic Joint Closure Box Waterproof FTTH Joint Box 2 Inlet 24 Out
Specifications
Brand Name :
Twilight Optic
Model Number :
TW-FATC-003-24
Place of Origin :
Guangdong
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs per week
Delivery Time :
7-10 working days
Packaging Details :
Inner box and carton box,4 pcs/ Carton, Size:53x43x38cm G/W:24KG
Name :
Fiber Optic Joint Closure
Material :
Strengthen Polymer Plastic
Color :
Black
Dimension :
385*245*155
Splice Tray :
24 core
PLC Splitter :
1pcs of 1x16
Weight :
6kg
Waterproof Level :
IP68
Application :
Wall mounting or Pole mounting
Capacity :
96 core
Description

Fiber Optic Joint Closure 2 inlet 24 out 24 Core in tray max capacity 96 Core 4 trays

The fiber access terminal closure can connect the drop cable with feeder cable as the termination point

in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting,

storage and management with suitable space.It's designed to seal without screws. The compact size and

flip-over cover bring easy operation as well as complete function.The splice trays are jointed with a hinge

at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.

Technical Index

Material Strengthen
Polymer Plastic		 Color Black
Capacity 96 core Protection level IP68
Dimension 385*245*155mm Sealing type Mechanical
Cable ports 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2
mechanicals glands for distribution cable (8-16.5mm)		 PLC Splitter 1pcs of 1x16
Weight 6kg Adapter sc

Features:

3.1 The body is made of high quality engineering plastic with good strength;

3.2 Water-proof design with IP-68 Protection level.

3.3 Integrated with flap-up splice cassette and adaptor holder.

3.4 With independent design, the box can be installed and maintained easily,

3.5 The fusion and termination are completely separated;

3.6 The drop leaf can be installed 2 pcs of 1*8 tube splitter.

3.7 24 ports cable entrance for drop cable.

3.8 Impact test:IKlO.Pull Force:lOON.Full rugged design

Applications
Wall mounting and pole mounting installtion
FTTH pre-installation and filedinstallation


Standard Accessories
Splice cassette and cable management tool,installation nuts and bolts,protection sleeves,
hose clamp,cable tube,wreach,cover holder,rubber seal for cable entrance.
