Dome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber Optic
Dome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber Optic
Dome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber Optic
Dome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber Optic
Dome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber Optic
Dome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber Optic
Dome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber Optic
Dome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber Optic
Specifications
Brand Name :
Twilight Optic
Model Number :
TW-GJS-D017
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
10-15 work days
Packaging Details :
Standard export carton packing.
product name :
96 Core Fiber Terminal Closure
Dimension(mm) :
460mm x Φ205mm
Number of Splice Trays :
1~4 Pieces(24F/tray)
Number of Inlet/Outlet Ports :
5 Pieces(1 x Oval + 4 x Round)
Diameter of Fiber Cable :
Φ5mm~Φ38m
Max capacity :
96cores
Sealing Structure :
Heat Shrinkable
Weight :
2.3kg
Description

Outdoor Wall Pole Mounted Fiber Splice Closure 96core Joint Box Fiber Optic Equipment

Product Description

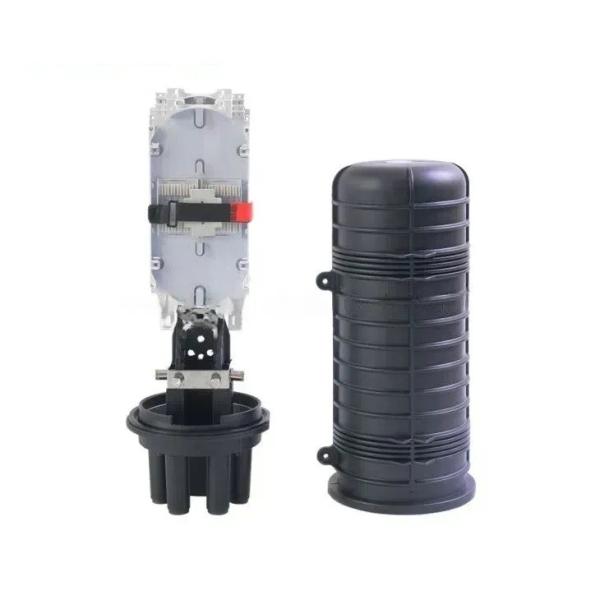

Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has 5 entrance ports on the end (4 round ports and 1 oval port). The shell of the product is made from Strenathen Polymer Plastic. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by heat-shrinkable tube. The closures can be opened again after be sealed, reused again without changing the sealing material.

Features

1. Suitable for aerial, duct, and underground application.
2. Intergrated seal, air tight and water proof
3. Quick open clamped design, Easy to re-enter
4. Reliable gasket sealing, reopened repeatedly without changing sealing material
5. Suitable for ribbon fibers,Ideal for cable repair

Application

1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver

Model TW-GJS-D017
Type Dome type
Sealing Structure Heat shrinkable
Number of Inlet/Outlet ports 5 ports
Cable Diameter 5-38mm
Maximum Capacity 96 Cores
Capacity per Splice Tray 24 Cores
Quantity of Splice Tray 4pcs
Body Material Strenathen Polymer Plastic
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 460(H)×205(D)mm
Net Weight 2.3KG
Temperature -40℃~65℃

Dome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber OpticDome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber OpticDome Fiber Optic Splice Closure Aerial FTTH Joint Box Fiber Optic
