Specifications
Brand Name :
FOCONNEC
Model Number :
TW-TCPC-LCLC
Certification :
CE ROSH
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Delivery Time :
5-8 working days
Packaging Details :
PE Bag
Description

SM 9/125 G652D (OS2) LSZH 12 Fibers LC/UPC-LC/UPC Fibre Optic Breakout Cables

These Breakout Style Multifiber assemblies are designed to reduce the complexity and operating cost of fiber optic networks by reducing the clutter from numerous individual fiber patch cords. These incredibly versatile fiber optic harnesses are available in a variety of configurations including OS2, OM1, OM2, OM3, or OM4 along with popular connectors such as LC, ST, and SC in standard or custom configurations.

Feture

  • Wavelengths: 1310 and 1550
  • Yellow Jacket
  • Bend Radius: Insensitive G.657.A2/B2 (7.5mm)
  • Cable Jacket: 0.9mm PVC
  • Operating Temperature: -4 to 158F (-20 to +70 C)
  • Standard Zip Cord
  • Core: OS2 Bend Insensitive Fiber - 9/125 Microns
  • Fiber-Grade: G.657.A2
  • Polarity: A(Tx) to B(Rx)
  • Polish: UPC to UPC
  • OS2 9/125 fiber conforms to ITU-657 A2/B2
  • Multiple Sizes Available: (1m,3m,5m,10m,20m)

Specification

Parameter
Unit		 FC,SC,LC ST,MU,MTRJ,
SM MM SM MM
UPC APC UPC UPC UPC
Insertion Loss dB ≤0.2 ≤0.2
Return Loss dB ≥55 ≥65 ≥35 ≥55 ≥35
Repeatability dB IL≤0.2 RL≥5 IL≤0.1 IL≤0.1 IL≤0.1
Durability dB IL≤0.2 RL≥5 IL≤0.1 IL≤0.1 IL≤0.1
Exchangeability dB IL≤0.2 RL≥5 IL≤0.1 IL≤0.1 IL≤0.1
Compressive Strength N F>300
Operation life Span Times n>1000
Operation Temperature ℃ -40~75
Storage Temperature ℃ -45~85
Cable Diameter cm 0.9,2.0,3.0 or specified

Application:
1.High density architectures

2.Data communication network
3.Optical system access network
4.Storage area network fiber channel

Ordering Information:

LC/UPC SM 12 Fibers 2.0mm 3m LSZH Breakout Cable

1 - 2 - 3 - 4 - 5 - 6 - 7
1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Ferrule End-face: PC, UPC, APC
3 Fiber Type: Single-mode (SM: 9/125um-G652), Multimode (MM: 50/125um-OM2 or 62.5/125um-OM1), OM3, OM4….;
4 Core Type: 1/2/4/6/8/12 Core optional…
5 Cable Diameter: 2.0mm, 0.9mm
6 Cable Length: 1m, 2m…or customized

7 Cable Jacket:PVC, LSZH, OM3, OFNR, OFNP

Product Image

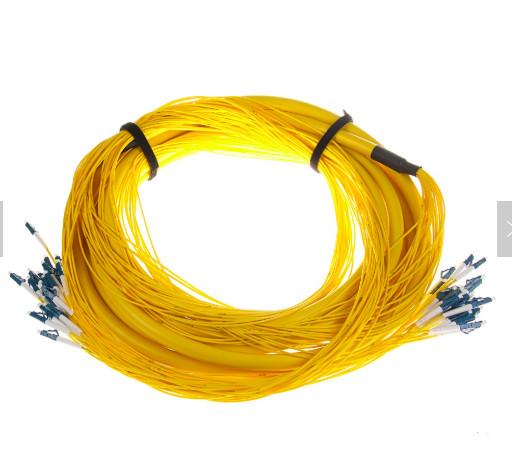

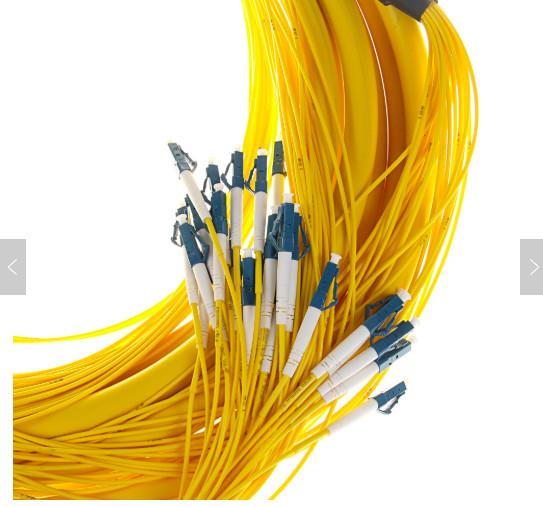

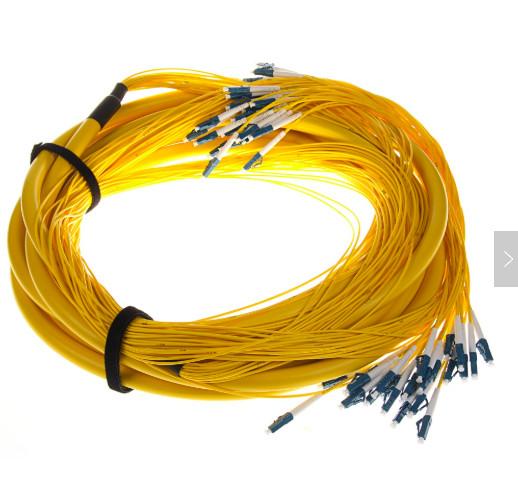

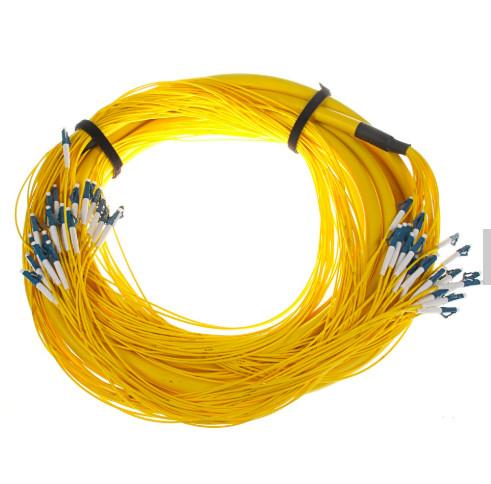

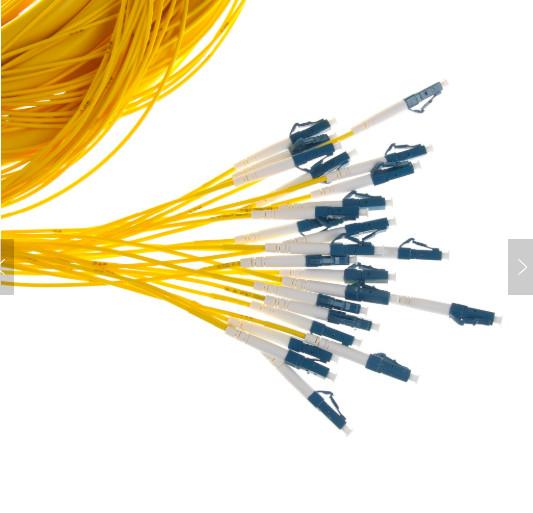

SM 9/125 G652D (OS2) LSZH 12 Fibers LC/UPC-LC/UPC Fibre Optic Breakout Cables 1MSM 9/125 G652D (OS2) LSZH 12 Fibers LC/UPC-LC/UPC Fibre Optic Breakout Cables 1MSM 9/125 G652D (OS2) LSZH 12 Fibers LC/UPC-LC/UPC Fibre Optic Breakout Cables 1M
