1mm~50mm Dia Sapphire Rod Optical Glass Cylinder Endoscope Rod Lens
1mm~50mm Dia Sapphire Rod Optical Glass Cylinder Endoscope Rod Lens
1mm~50mm Dia Sapphire Rod Optical Glass Cylinder Endoscope Rod Lens
1mm~50mm Dia Sapphire Rod Optical Glass Cylinder Endoscope Rod Lens
Specifications
Brand Name :
jingjing
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
T/T,Western Union,
Supply Ability :
100000 pcs/Month
Delivery Time :
1-4 weeks
Certification :
ISO9001
Product Name :
Sapphire Rod lens
Material :
Optical Sapphire
Hardness Mohs :
9.0
Melting Point :
2045°C
Diameter :
0.1-100mm
Diameter tolerance :
±0.02mm
Length :
0.5-300mm
Length tolerance :
±0.02mm
Use :
Optical
Application :
Medical Endoscope Lens/Optical Equipment
Density :
3.98g/cm³
Structure :
Plano-convex
Surface :
Fine Grinding
Description

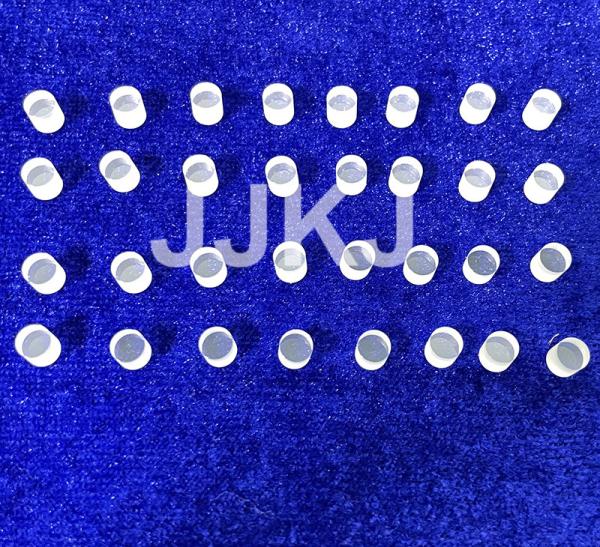

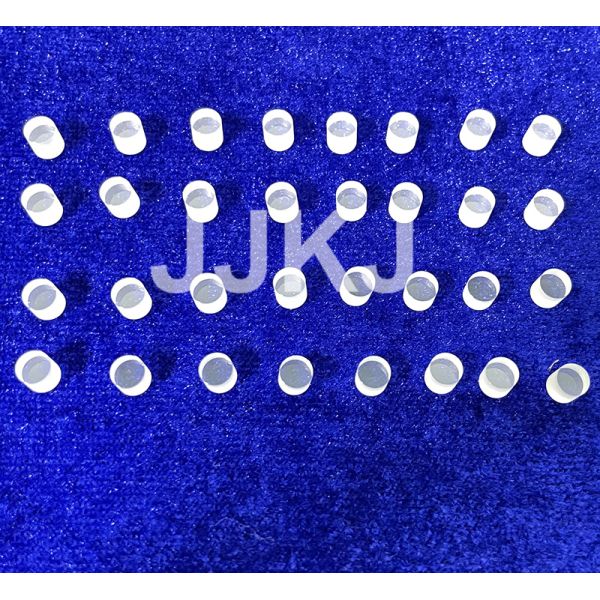

Diameter 1mm~50mm Sapphire Optical glass Cylinder Rod, endoscope rod lens

Product Description:

Sapphire Rod Lenses for Rigid Endoscopes
Rod lens systems use special glass rods with optically finished ends, providing images with higher brightness, contrast and colour reproduction than conventional lenses.

Commonly, rigid endoscopes have a series of high-resolution optical glass rod lenses. The endoscopes can be forward viewing (0 degrees) or angled (10–120 degrees) to allow visualization out of the axis of the telescope and increase the FOV by rotating the instrument. The optical quality of lens-generated images of rigid endoscopes still surpasses that of the fiber-optic or digital images produced by flexible scopes.

Technical Parameters:

Product Name

Sapphire Rod Lenses

Type

Flat/FlatPlano-Convex
Plano-Concave
Cemented

Material

Sapphire

Hardness

Mohs 9

Diameter

1-380mm customize for request

Diameter tolerance

As request

Length

1-500mm

Length tolerance

As request

Surface

20/10~60/40

Clear Aperture

90%

Bevel

Protective bevel as needed

Coating

According to customer's requirement
1mm~50mm Dia Sapphire Rod Optical Glass Cylinder Endoscope Rod LensApplications:

1mm~50mm Dia Sapphire Rod Optical Glass Cylinder Endoscope Rod LensMicro Rod Lenses are available with flat, plano-convex, plano-concave, cemented etc which applied in medical endoscopes.

FAQ:
Q:What is your minimum order requirement?
A:MOQ: 10 pieces

Q:How long will it take to execute my order ?
A:10-25 days after confirming the payment.

Q:Can you give warranty of your products ?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.

Q: Do you provide free samples?
A: We can provide free samples if we have stock optics as your request,but the freight is yours.

Q: What is your terms of payment ?
A:T/T, Western Union ,Paypal
