GYFTA 53 Core Indoor Fiber Optic Cable Anti Interference Ethernet Cables
GYFTA 53 Core Indoor Fiber Optic Cable Anti Interference Ethernet Cables
Specifications
Brand Name :
AT-FIBER
Model Number :
GYFTA 53 Core Fiber Cable Cctv Cable Indoor Outdoor Fiber Optic Cable
Certification :
ISO9001
Place of Origin :
China
MOQ :
10km
Price :
$0.02 - $0.10/ Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Kilometer/Kilometers per Month
Packaging Details :
Wooden drum
Number oNumber of Conductorsf Conductors :
1
Product name :
Cable indoor fiber optic cable
Jacket Material :
LSZH, PVC
Application :
for ftth fiber patch cord
Allowable tensile force :
1000/3000
Fiber Type :
SM G652D
Package :
Drum/Carton
Flattening force/bending radius allowed :
Weatherproof\Moistureproof
Cable type :
Simplex
Cable Diameter :
2
Description

GYFTA 53 Core Fiber Cable Cctv Cable Indoor Outdoor Fiber Optic Cable

▌Product Description

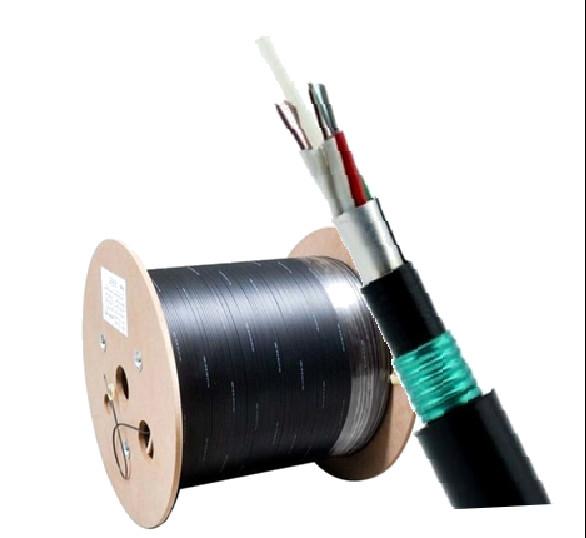

The fibers, 250μm, are positioned in a loose tube made of a high modulus material. The tubes are filled with a water-resistant filling compound. At the center of the cable core is a metal strengthening core. After the plastic-aluminum strip is longitudinally coated, a layer of polyethylene inner sheath is extruded. After the plastic-steel strip is longitudinally coated on both sides, a polyethylene sheath is extruded to form the cable.


▌Products Features

  • The central steel bar makes the cable have good compressive performance and protects the fiber single steel wire center steel core;
  • Double sheath and double armor structure, excellent lateral pressure resistance and high deformation resistance;
  • The polyethylene PE outer sheath has excellent resistance and coordination, and is safer and more reliable to use;
  • The longitudinal encapsulation of the steel-plastic composite material PSP effectively improves the moisture resistance of the cable and can resist the influence of various severe weather environments.

▌Advantages

  • very practical
  • High mechanical strength, anti-interference, non-conductive, corrosion-resistant, anti-corrosion
  • Moisture-proof and waterproof, not affected by the weather
  • The communication cable is reinforced with pure imported high-strength FRP fiber
  • ductile composite plastic

▌Fiber Code

MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm

▌Optical Characteristics

　 G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm 　 　 ≤3.0dB/km ≤3.0dB/km
@1300nm 　 　 ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.36dB/km 　 　
@1550nm ≤0.22dB/km ≤0.23dB/km 　 　
Bandwidth (Class A) @850 　 　 ≥500MHZ·km ≥200MHZ·km
@1300 　 　 ≥1000MHZ·km ≥600MHZ·km
Numerical Aperture 　 　 　 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength 　 ≤1260nm ≤1480nm 　 　

GYFTA 53 Core Indoor Fiber Optic Cable Anti Interference Ethernet Cables

▌Application scenario

GYFTA 53 Core Indoor Fiber Optic Cable Anti Interference Ethernet Cables GYFTA 53 Core Indoor Fiber Optic Cable Anti Interference Ethernet Cables GYFTA 53 Core Indoor Fiber Optic Cable Anti Interference Ethernet Cables

GYFTA 53 Core Indoor Fiber Optic Cable Anti Interference Ethernet Cables GYFTA 53 Core Indoor Fiber Optic Cable Anti Interference Ethernet Cables

GYFTA 53 Core Indoor Fiber Optic Cable Anti Interference Ethernet Cables
