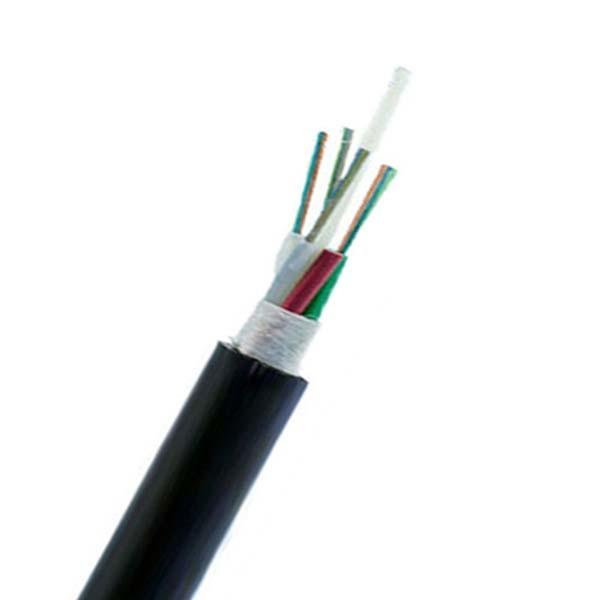

48 Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP
48 Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP
48 Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP
48 Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP
48 Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP
48 Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP
Specifications
Brand Name :
Aitong
Model Number :
48 Core Non Metallic Optical Fiber Cable
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 km/Day
Delivery Time :
5-8 days
Packaging Details :
Wooden packing
Fiber Count :
2-288 Cores
Fiber Type :
G652D/G657A
Strength member: :
Steel wire or FRP
Application :
Outdoor duct/aerial lashed
Structure :
Strand Loose Tube
Installation :
Aerial & Duct
Description

3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.48 Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP

▌Product description

GYFTY optical cable is a stranded structure. Single Mode/Multi Mode Gyfty/Gyty Outdoor Strand 144 Core Fiber Optic Cable

▌Characteristics

  • Suitable for overhead and pipeline installation with rodent and lightning protection requirements
  • Provide a rodent-proof protective cover with chemical rodent resistance, which effectively delays the spread of rodent-proof additives and protects the working environment and construction safety
  • Small diameter, light weight and friendly installation
  • All-electric design, suitable for areas prone to lightning strikes
  • Two parallel steel wires ensure tensile strength

▌Features

  • Stretching strength: 800/3000N
  • Use environment: -40~60℃
  • Product weight: 80-130Kg/KM
  • Flattening force: 800/3000N

▌Applications

  • GYFTY Fiber Optic Cable is a type of fiber cable which is widely used in areas with excessive thunder, power transmission system, and high electromagnetic interface. It is referred to as a self-support fiber cable that doesn’t require any external support due to its central metallic part.

▌Fiber Color Code

No. 1 2 3 4 5 6
Color Blue Orange Green Brown Gray White
No. 7 8 9 10 11 12
Color Red Black Yellow Violet Pink Aqua


▌Cable structure and parameter

Fiber count 2~12 14~24
Max. Cores in tube 12 24
Cable diameter 7.6 8.3
Tensile strength(N) 1500
Crush resistance
(N/100mm)		 Long term 300
Short term 1000
Bending radius Dynamic 20×D
Static 10×D
Storing temperature -40°C to +70°C
Operating temperature -40°C to +70°C

G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)		 @850nm ≤3.0dB/km ≤3.0dB/km
@1300nm ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km
@1550nm ≤0.22dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500MHz·km ≥200MHz·km
@1300nm ≥1000MHz·km ≥600MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm


▌Structure and Technical Specifications GYXY

Fiber
Count

Nominal
Diameter
(mm)

Nominal
Weight
(kg/km)

Allowable Tensile Load
(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 6.2 52 1000 400 1000 1000
14~24 7.0 64 1200 500 1000 1000


▌Structure and Technical Specifications GYFXY(All-Dielectric)

Fiber
Count

Nominal
Diameter
(mm)

Nominal
Weight
(kg/km)

Allowable Tensile Load
(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~12 6.2 45 600 250 1000 1000
14~24 7.0 56 800 300 1000 1000


▌Roduction and Quality Test

48 Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP



▌Application

48 Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP




▌Packaging

48 Core Fiber Optic Cable Non Metallic Optical Fiber Duct Cable Steel wire or FRP

1. Standard Packaging:
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
2. Sheath mark:
The following printing(white hot foil indentation)is applied at 1meter intervals.
a. Supplier: Guanglian or as customer required
b. Standard Code(Product Type, Fiber Type,Fiber Count)
c. Year of manufacture: 7 years
d. Length marking in meters.

 Our Service:
1. We are the one of biggest manufacture of fiber optic
cable in China and has more than 10 years manufacturing
and selling experience.
2. We accept OEM. The cable size and material are customized.
Ur own logo and own design are welcome. We will produce
according to your requirment and description;
3. Please send us inquiry for more products info and we will
give you feedback in 12 hours.


▌FAQ


1. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.

2. Are you the real manufacturer?
Us. We are the real manufacturer with 23 year’s history.

3. What’s your payment terms?
Us. We accept T/T,L/C,Western Union,D/P etc. 10% in advance and 90% before shipment.
4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.

5. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 10km.
