Specifications
Brand Name :
Aitong
Model Number :
CAT6 SFTP Lan Cable
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 Rolls
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 Rolls /Day
Delivery Time :
5-8 Days
Packaging Details :
Pull Box
Product name :
SFTP Cat6 Copper Network Cable Outdoor Shielded PVC And PE Jacket
Number of conductors :
4 pair
Jacket :
PVC PE LSZH
Conductor :
copper
Wire Gauge :
23awg
Package :
1000ft per box/custmized
Jacket color :
Yellow / Gray / Blue or as required,can be custom-made
Application :
Telecommunication,Computer/cabling system/multimedia,Computer networks
Description

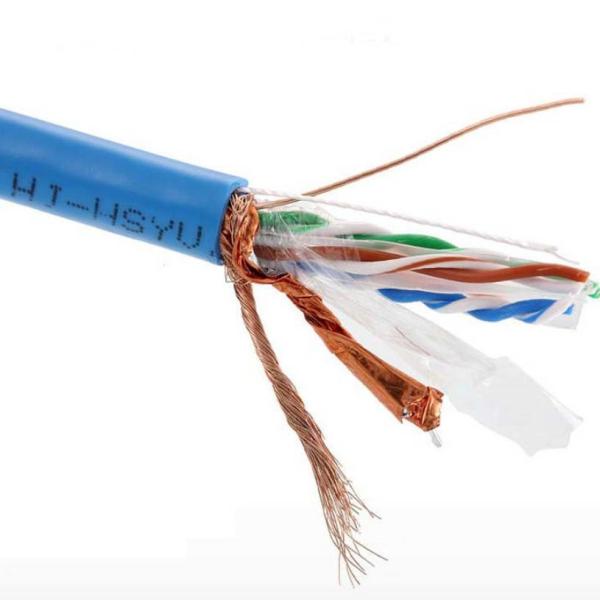

SFTP Cat6 Copper Network Cable Outdoor Shielded PVC And PE Jacket

Description
1. Cat6 SFTP Shielded Twisted Pair Cable
2. Doube Shields With Al-Foil and Tinned Copper Braiding
3. Pass FLUKE Test High Performance Computer Networking Cable
4. Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
5. Digital Communication Applications of up to 550MHz Bandwidth
6. Exceeds ANSI/TIA 568-C.2 , ISO/IEC 11801 Standards

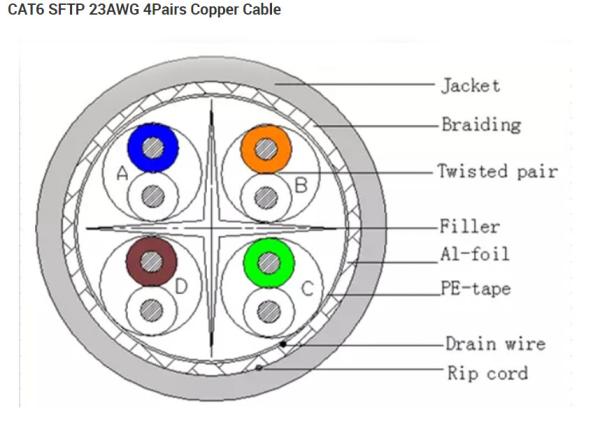

Cross Section
SFTP Cat6 Copper Network Cable Outdoor Shielded PVC And PE Jacket
Construction Characteristics
Conductor
Solid Bare Copper
AWG
23
Conductor Dia. (mm)
0.585
Insulation
PE
Insulation Dia.(±0.01mm)
1.02
Filler
LDPE
Pe-tape
Yes
Drain wire (TC)
0.40
Al-foil
Yes
Braiding
Tinned Copper
Jacket
PVC / LSZH / PE
Outer Dia.(±0.20mm)
8.50
Rip Cord
Nylon

Electrical & Physical Characters
Rating
75℃ 30V
Conductor Resistance
Max 78.8ohm/km at 20℃
Dielectric Strength
Min AC1.5KV
Spark Test
5.0KV
AC Leakage Current Through overall Jacket
AC 1500V <=10mA
Insulation
Unaged
Tensile Strength
16.5 Mpa
Elongation
500%
Aged
Tensile Strength
14.2 Mpa(100℃ 168h)
Elongation
250%(100℃ 168h)
Jacket
Unaged
Tensile Strength
13.8 Mpa
Elongation
150%
Aged
Tensile Strength
11.7 Mpa(100℃ 168h)
Elongation
80%(100℃ 168h)
Cold Bend Test
-20℃ 4hours No Cracking
DC Resistance Unbalance
Max 5%
Pair-to-Ground Capacitance Unbalance
Max 3300pF/km
Characteristic Impedance
1~500MHZ 100±15OHM
Propagation Delay
500MHZ Max 536ns/100m
Delay Skew
1~500MHZ Max 40ns/100m

Application:

1.Ethernet;10 Base-TX;ATM; Trunk Cabling;

2.Widely apply to network wiring structure and transmission media, such as audio,video,digital communication, message .

3.It commonly uses for connecting computers with other Ethernet devices. Such as, DSL/Cable Modem hubs, switches, routers, Etc

Production Line And Quality Test

SFTP Cat6 Copper Network Cable Outdoor Shielded PVC And PE Jacket

SFTP Cat6 Copper Network Cable Outdoor Shielded PVC And PE Jacket

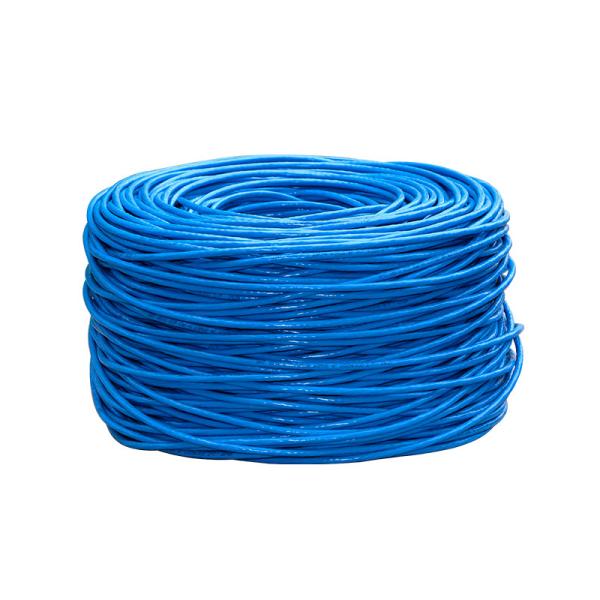

Packing

SFTP Cat6 Copper Network Cable Outdoor Shielded PVC And PE Jacket

SFTP Cat6 Copper Network Cable Outdoor Shielded PVC And PE Jacket
