250μM SM G652D Indoor Fiber Optic Cable Anti Interference
250μM SM G652D Indoor Fiber Optic Cable Anti Interference
Specifications
Brand Name :
AT-FIBER
Model Number :
GYFTA 53 Core Fiber Cable Cctv Cable Indoor Indoor Optical Fiber Cable
Certification :
ISO9001
Place of Origin :
China
MOQ :
10km
Price :
$0.02 - $0.10/ Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Kilometer/Kilometers per Month
Packaging Details :
Wooden drum
Product name :
Cable indoor fiber optic cable
Number oNumber of Conductorsf Conductors :
1
Jacket Material :
LSZH, PVC
Application :
for FTTH fiber patch cord
Allowable tensile force :
1000/3000
Fiber Type :
SM G652D
Package :
Drum/Carton
Flattening force/bending radius allowed :
1000/3000
Cable type :
Simplex
Model :
Indoor
Cable Diameter :
2
Description

LSZH PVC Simplex Indoor Fiber Optic Cable SM G652D GYFTA 53 Core

▌Product Description

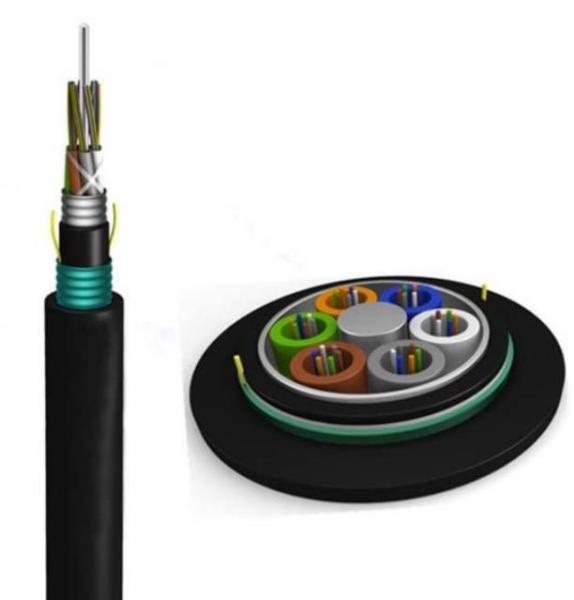

The fibers, 250μm, are positioned in a loose tube made of a high modulus material. The tubes are filled with a water-resistant filling compound. The metal reinforcement core also needs to be extruded with a layer of polyethylene.


▌Products Features

  • The tube is filled with waterproof ointment to provide the most critical protection for the optical fiber;
  • The central reinforcing core enhances the parallelism and tensile strength of the cable, with low loss and long service life;
  • Good wear resistance, tensile strength and water resistance, stable performance;
  • The longitudinal encapsulation of steel-plastic composite PSP effectively improves the moisture resistance of the cable and avoids the influence of bad weather environment.

▌Advantages

  1. Very strong practicability
  2. High mechanical strength, anti-interference, non-conductive and anti-corrosion

  3. This fiber has low attenuation and high conductivity

  4. Communication cable using high quality optical fiber can reduce the transmission loss affecting the optical signal

▌Fiber Code

MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm

▌Optical Characteristics

　 G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm 　 　 ≤3.0dB/km ≤3.0dB/km
@1300nm 　 　 ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.36dB/km 　 　
@1550nm ≤0.22dB/km ≤0.23dB/km 　 　
Bandwidth (Class A) @850 　 　 ≥500MHZ·km ≥200MHZ·km
@1300 　 　 ≥1000MHZ·km ≥600MHZ·km
Numerical Aperture 　 　 　 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength 　 ≤1260nm ≤1480nm 　 　

250μM SM G652D Indoor Fiber Optic Cable Anti Interference

▌Application scenario

250μM SM G652D Indoor Fiber Optic Cable Anti Interference 250μM SM G652D Indoor Fiber Optic Cable Anti Interference 250μM SM G652D Indoor Fiber Optic Cable Anti Interference

250μM SM G652D Indoor Fiber Optic Cable Anti Interference 250μM SM G652D Indoor Fiber Optic Cable Anti Interference

▌FAQ

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 110 staff.

2. How many years have you been in the field of fiber optics ?

Since 1998.

3. Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4. What is your warranty period?

25 years for fiber optic cable

5. Which kind of certification you have ?

ISO9001, SGS, RoHs.

6. What is your delivery time?

Usually within 2-3 working days

7. What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8. What is your payment way?

T/T, L/C, Western Union and Paypal.

9. Can you supply customized products and logo?

Yes. We supply OEM&ODM service. You can send us your drawing.

250μM SM G652D Indoor Fiber Optic Cable Anti Interference
