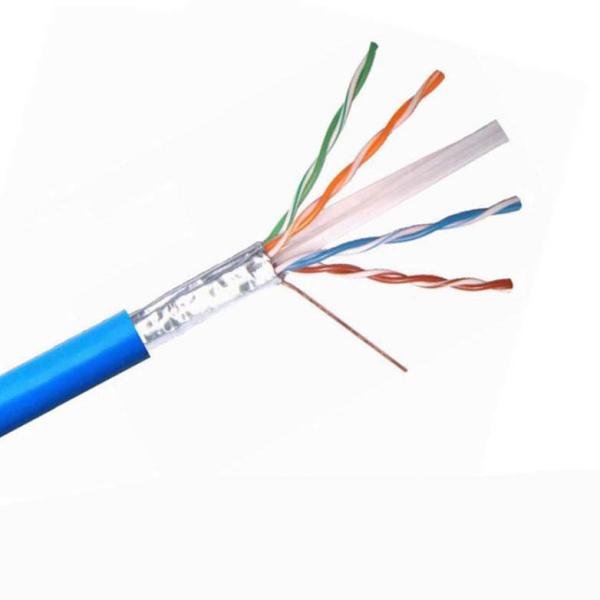

FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath
FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath
FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath
FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath
Specifications
Brand Name :
Aitong
Model Number :
Cat6 FTP Lan Cable
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 Rolls
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 Rolls/Day
Delivery Time :
5-8 Days
Packaging Details :
Box
Product Name :
CAT6 FTP 23AWG 0.57mm PVC+PE Sheath
Conductor material :
Bare Copper / Copper clad aluminum,Stranded Bare Copper,Solid bare copper,pure copper
Number of conductors :
8
Jacket :
PVC PE LSZH
Shield :
UTP/FTP patch cord
Application :
Telecommunication,Computer/cabling system/multimedia,patch cord fobelec,Computer networks
Color :
customized,Blue,grey,white
Length :
305m/1000ft/customized
Description

CAT6 FTP 23AWG 0.57mm Pure Copper PVC+PE Double sheath Lan Cable

Cable Specification

Item Name FTP CAT6 Lan Cable
TYPE Cat6
Construction FTP
Conductor CCA/23AWG Solid Copper
Number of Conductors 8
Insulation Material HDPE
Cross Material PP
Application Lan cable
Jacket PVC/LSZH
Rip cord Nylon
Operating temperature -20 ° C - +60 ° C
Standard EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS
Certificate CE/ISO/RoHS Approved

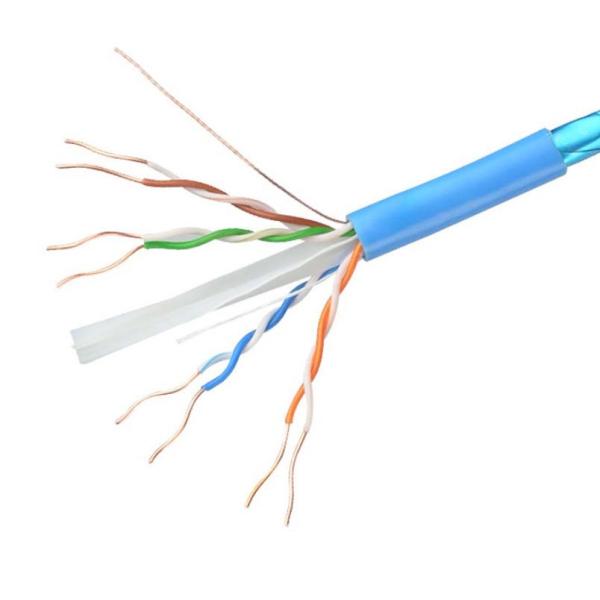

Construction and Dimension
Anti-Crosstalk Divider
LDPE:4.5*0.3
Cable Shield(Aluminum Foil)
Tick:0.060mm,Extent:25mm
ESD Drain Wire
O.5TC
Nilon Rip cord
150D
Max.capacitance unbalance(pF/100m)
≤330pF /100M(Per TIA/EIA-5688.2)
≤60pF/100(Per IEC 61156)
Nominal Velocity of Propagation
72%
Max.Delay Skew(ns/100m)
≤45ns/100m
Max.Conductor DC Resistance 20Deg.C
9.38Ω/100M (24AWG)
Max.DC Resistance unbalance 20 Deg.C
≤5% (per TIA/EIA-5688.2)
≤2% (per IEC 61156)
Characteristic lmpedance(O) 4~100MHz
100±15
Operating Temp.Range
-20~70 ℃
Max.Recommended Pulling Tension
110N
Min.Bend Radius(lnstall)
8XO.D.

Material
A new performance evaluation index is determined for the six types of cables. Single core bare copper with specification of 23AWG is used as conductor, polyethylene polymer material is used as insulator, and flame retardant polymer material is used as outer skin material with color of gray. Twisted-pair cables meet the requirements of international specification (ISO/IEC), electrical characteristics exceed the requirements of international specification (CAT.6), cable center cross isolation to ensure NEXT performance and reasonable construction bending radius. LSZH: "Low smoke and no halogen". Low smoke halogen free material can meet the requirements of safety and environmental protection.

Cable used
The cross skeleton in the center of the cable rotates with the change of length. The four pairs of twisted pair cables are stuck in the groove of the skeleton to maintain the relative position of the four pairs of twisted pair cables and improve the balance characteristics of the cable and crosstalk attenuation.

Advantages
For voice, Integrated Service Data Network (ISDN), ATM155Mbps and 622Mbps, 100MbpsTPDDI, Fast Ethernet and Gigabit Ethernet; Compared with class 5 and super class 5, it has the characteristics of long transmission distance, small transmission loss, wear resistance and pressure resistance.

OEM / Related Production For Lan Cable
OEM custom-made production according to different customer's request. Shape, PVC ,color, Conductor diameter, degree of tightness, logo design, Inner and Outer package design, all of below request are available.


FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath

FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath

Application

FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath

Production Line and Quality Test

FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath

Packing

FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath

FTP 23AWG 0.57mm Pure Copper Cat6 Ethernet Cable 1000 Ft PVC+PE Double Sheath
