FTTH Indoor / Outdoor Termination Fiber Optic Distribution Box Plastic 1.45kg
FTTH Indoor / Outdoor Termination Fiber Optic Distribution Box Plastic 1.45kg
FTTH Indoor / Outdoor Termination Fiber Optic Distribution Box Plastic 1.45kg
FTTH Indoor / Outdoor Termination Fiber Optic Distribution Box Plastic 1.45kg
Specifications
Brand Name :
Aitong
Model Number :
PDB
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100
Delivery Time :
5-8 days
Packaging Details :
CTN
Application :
Telecommunication
Color :
Customized,Black
Size :
35*34*12cm
Weight :
1.45kg
Material :
PC, ABS
Operating Temperature :
-40 degree~+85 degree
Product name :
FTTH Indoor / Outdoor Corridor Fiber Optic Distribution Box 1.45kg
IP Rate :
IP65
Description

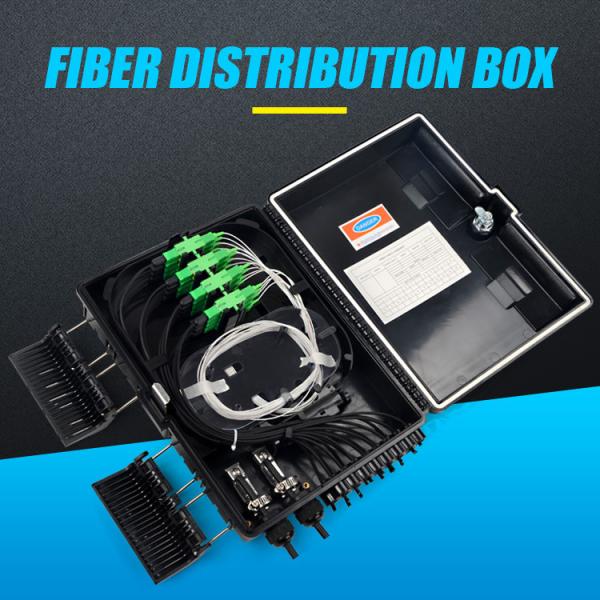

FTTH indoor/outdoor fiber to the home distribution box Termination fiber optic distribution box

Description

The series of fiber optic distribution boxes are suitable for use at the handover point

of armored fiber optic cable and household drop cable in the fiber access network.

The cabinet adopts wall-mounted or pole-mounted installation, which is suitable for

indoor and outdoor use; SC-type optical fiber adapters and quick connectors are

used to connect and dispatch the outer armored optical cable and the home drop optical cable.

Performance indicators

Working temperature: -40℃~+70℃;
Storage temperature: -40℃~+70℃;
Working humidity: ≤90% (at +30℃);
Atmospheric pressure: 62Kpa～106Kpa;
Insulation resistance: the insulation resistance between the grounding device and the box

metal workpiece is not less than 2X104MΩ/500V(DC);
Withstand voltage: The withstand voltage between the grounding device and the box metal

workpiece is not less than 3000V (DC)/1min;
Insertion loss: IL≤0.3dB (PC type); IL≤0.3dB (APC type);
Return loss: RL≥40dB (PC type); RL≥50dB (UPC type); RL≥60dB (APC type);
Interchangeability: ≤0.2dB.

Product name Fiber Optic Distribution Box IP Rate IP65
Product Model FDB-

Product Size

Inner Box Size

310*235*110 mm

325*250*120 mm
Ports

2 inlet port 12.5mm

16 out port 11.5mm

uncut design midspan port

 Packing Quantity

10 pcs / carton

66*26*58cm 14.6kg
Compatible with

1:16 cassette splitter or

16 core adapter pigtail

 Material PC ABS
Installation Type wall / pole-mounted Net weight 1.45kg
Accessories 1. Wall mounting kits : 4 pieces
2. Screws : 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 16 pieces
5. Key :1 piece
6. Inlet accessories:1 set

FTTH Indoor / Outdoor Termination Fiber Optic Distribution Box Plastic 1.45kgFTTH Indoor / Outdoor Termination Fiber Optic Distribution Box Plastic 1.45kg

FTTH Indoor / Outdoor Termination Fiber Optic Distribution Box Plastic 1.45kg

Product tags

outdoor fiber termination box

,

fiber optic box outdoor

,

odf fiber optic terminal boxes
