3.5mm Jack fiber optic audio converter providing OEM Service
3.5mm Jack fiber optic audio converter providing OEM Service
3.5mm Jack fiber optic audio converter providing OEM Service
3.5mm Jack fiber optic audio converter providing OEM Service
3.5mm Jack fiber optic audio converter providing OEM Service
3.5mm Jack fiber optic audio converter providing OEM Service
3.5mm Jack fiber optic audio converter providing OEM Service
3.5mm Jack fiber optic audio converter providing OEM Service
Specifications
Brand Name :
OptoElectronics
Model Number :
OP-A-1-FC(ST)
Place of Origin :
China
MOQ :
1 pair
Price :
Conact us
Payment Terms :
T/T
Delivery Time :
3~15working days
Packaging Details :
Carton box
Description

3.5mm Jack Fiber Optic Audio Converter Providing OEM Service

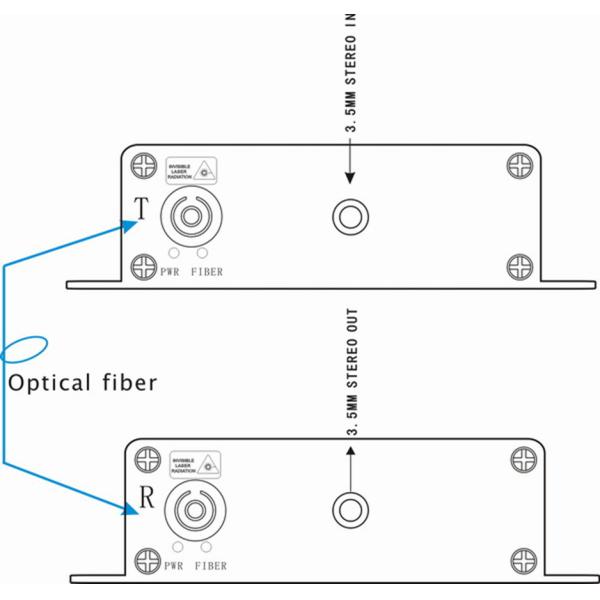

3.5mm Jack audio to Fiber Extender

3.5mm Stereo To Fiber support 1~8 channels 3.5mm Stereo over one multi-mode or single-mode optical fiber. These fiber optic transmitters and fiber optic receivers are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, or SC optical connectors are optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system's operating status.

Features

• 24-Bit Digitally Encoded Audio

• Support Point-to-Point or Daisy-Chain connection

• Multimode Fiber transmits up to 4km without Optical Attenuation

• Single-Mode Fiber transmits up to 100km without Optical Attenuation

• No EMI, RFI, Cross Talk, or Video Distortion, and no ground loops

• LED Indicators for Instant System Monitoring

• Standalone or Rack Mount in FVC14 Chassis

• Produce according to customer's specifications, providing OEM

Specifications

Audio
Input/output Impedance 600ohm(unbalance)
Max input/output voltage 3.0Vp-p
Frequency Response 10 Hz～29kHz @±3dB
SNR > 70dB
Connector 3.5mm Stereo

Electrical & Mechanical
Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 3W
Stand-Alone Dimensions: 104mm × 104mm × 28mm
Shipping Weight: (include Transmitter & Receiver ) 0.8kg

Environmental
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours


3.5mm Jack fiber optic audio converter providing OEM Service
