8ch Bidirectional Balanced Audio To Fiber Converter
8ch Bidirectional Balanced Audio To Fiber Converter
8ch Bidirectional Balanced Audio To Fiber Converter
8ch Bidirectional Balanced Audio To Fiber Converter
Specifications
Brand Name :
OptoElectronics
Model Number :
OP-8A-XLR
Place of Origin :
China
MOQ :
1 pair
Price :
USD870
Supply Ability :
1000pcs/month
Delivery Time :
8~15working days
Packaging Details :
Carton box
Audio in/out :
XLR
Fiber Type :
Singlemode/ Multi mode optional
Optical Interface :
ST,FC.SC.LC Optional
Distance :
500meter to 20KM +
Description

Overview

8 ch BIDI balance audio over fiber series support 8 Channel BIDI balance audio 16-bit digitally encoded broadcast quality balance audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Opitcal:

Wavelength 1310nm&1470nm~1610nm
Output Power -9~ -3dBm / -5~0dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balance Audio

Number of Channels 8 BIDI
Input Connector XLR(female)
Output Connector XLR(male)
Input Impedance 10K Ohm
Output Impedance 50 Ohm
Max input/output voltage 1.288Vp-p
Frequency Response 10 Hz～44.1kHz @±3dB
SNR > 70dB

Electrical & Mechanical

Power Adapter: AC 90V~240V
Power Consumption: < 16W
Installation 19’’ 1U rack-mount chassis
Shipping Weight: (include Transmitter & Receiver ) 8kg

Environmental

Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours

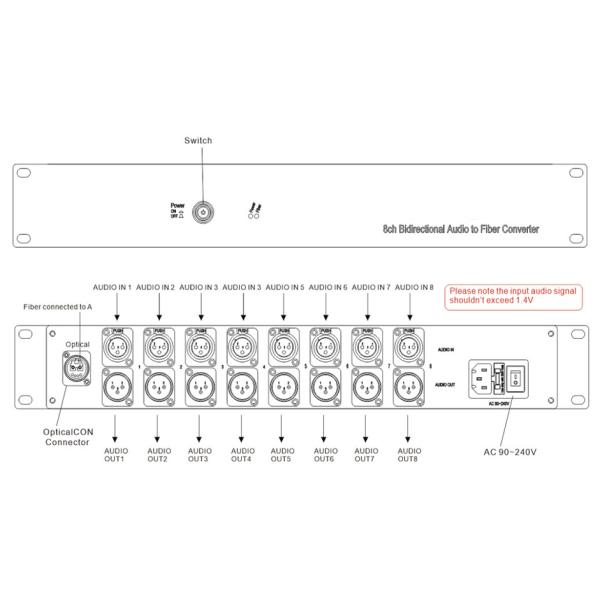

Connect diagram:

8ch Bidirectional Balanced Audio To Fiber Converter
