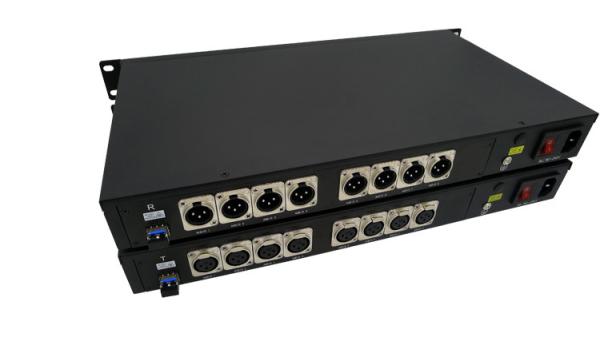

9/125u Single Mode 8 Channels 3 Pin XLR Balanced Audio Over Fiber Converter
9/125u Single Mode 8 Channels 3 Pin XLR Balanced Audio Over Fiber Converter
Specifications
Model Number :
BY-XLR-8
Place of Origin :
Guangdong, China
Brand Name :
beyond
Packaging Details :
Carton
Supply Ability :
1000 Pair/Pairs per Month
Price :
$480.00 - $500.00/pairs
MOQ :
1 pair
Payment Terms :
T/T
Delivery Time :
3~15working days
Type :
Audio to fiber
Use :
Urban traffic monitoring,campus monitoring
No. of Fiber :
1.
Warranty :
3 Years
Description

9/125u single mode 8 channels 3-pin XLR banlanced audio over fiber media converter

8 ch balanced audio over fiber series support 8 Channel balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, SC or LC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Wavelength

1310nm&1470nm~1610nm

Output Power

-9~ -3dBm / -5~0dBm

Optic fiber

50/125u multimode,62.5/125u multimode,9/125u single mode

Rx sensitivity

-25dBm

Optical connector

FC,ST,SC ,LC(optional)

Distance

0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM

Number of Channels

8

Input Connector

XLR(female)

Output Connector

XLR(male)

Input / Output Impedance

10K Ohm

Input capacitance LINE inputs

10 pF

Max input/output voltage

3.0Vp-p

Frequency Response

10 Hz~24kHz @±3dB

Sample Rates From

48kHz

SNR

> 80dB

Power Adapter:

AC 90V~240V

Power Consumption:

< 8W

Installation

19’’ 1U rack-mount chassis

Shipping Weight:

(include Transmitter & Receiver ) 7kg

Operating Temperature:

-20°C ~ +75°C

Storage Temperature:

-40°C ~ +85°C

Relative Humidity:

0% ~ 95% (non-condensing)

MTBF:

>100,000 hours
