Specifications
Model Number :
BY-SDI-12G-ALEXA
Place of Origin :
China
Brand Name :
beyondopto
Packaging Details :
STANDARD
Supply Ability :
500 Pair/Pairs per Month
Price :
$180.00 - $780.00/pairs
MOQ :
1 pair
Payment Terms :
T/T
Delivery Time :
3~15working days
Type :
Fiber opitc adapter
Use :
FILM
No. of Fiber :
1.
Port :
SHENZHEN
Description

FEATURES

· 1 channel video and audio transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal over optic fiber

· Handles pathological pattern

· Automatic cable equalization to ensure signal integrity

·With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s

·Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,

· Long transmission capability at least 500M (MM fiber)/10KM(SM fiber)

· Terminal block power input for industrial application

·Supports hot swapping and hot plugging

·Simplex LC/PC single mode optical connection

DESCRIPTION

12G-SDI to fiber convertor is an ideal and economic solution for broadcasting or surveillance applications. It receives one 12G/6G/3G/HD/SD -SDI electrical input, perfectly converts electrical SDI signal to fiber optic SDI signal. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal.

Both transmitter and receiver provide equalizing and integrated reclocker at input unit in order to re-construct the signal for consistent quality. Besides, with advanced fiber technology, the 12G-SDI to fiber can easily pass pathological pattern to prove its complete transmission.

SDI 12G Fiber Optic Extender Optical Cable Extension

Specifications:

SDI input/output

Signal format

SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,

Data rate

270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s

Cable Equalization

Automatic cable EQ (Belden 1694A cable)

75 m at 11.88 Gbps (4Kp60 UHD)

120 m at 5.94 Gbps (UHD)

200 m at 2.97 Gbps (FHD)

280 m at 1.485 Gbps (HD)

600 m at 270 Mbps (SD)

SDI interface

BNC 75 Ohm

Fiber interface

LC/PC

Number of transmitter channel

1

Transmitter wavelength

1310 nm

Transmitter output power

-6~-1dBm(0±3dBm optional)

Number of receiver output

1

Receiver sensitivity

-14.4dBm~-1dBm

General index

Input power

DC 5 V or 12V

Power consumption

<3W

Work Temp

-20°C to 70°C

Storage Temp

-40°C to 85°C

humidity

0 ~ 95% (non-condensing)

Case material

Aluminum

Net weight

210g /pair (with Power supply 440g/pair)

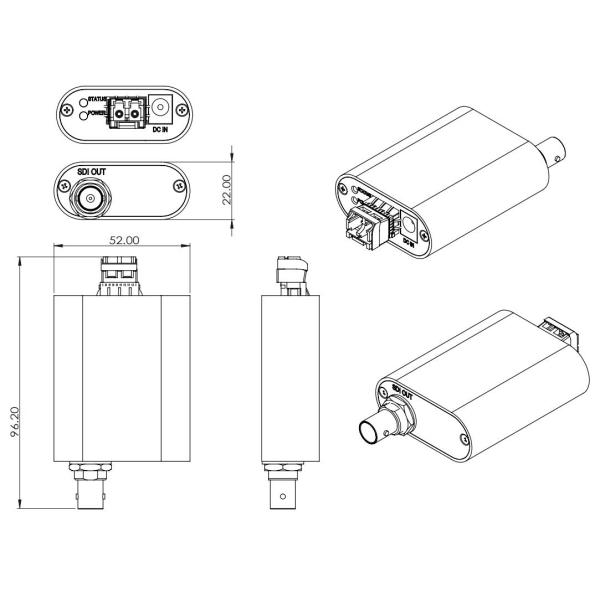

Dimension:

SDI 12G Fiber Optic Extender Optical Cable Extension
