Specifications
Model Number :
BY-DV-8C
Place of Origin :
Shenzhen China
Brand Name :
Beyond
Packaging Details :
Carton
Supply Ability :
2000 Pair/Pairs per Month
Price :
$199.00 - $299.00/pairs
MOQ :
1 pair
Payment Terms :
T/T
Delivery Time :
3~15working days
Type :
Fiber Optic Converter
Warranty :
3 Years
No. of Fiber :
1.
Description

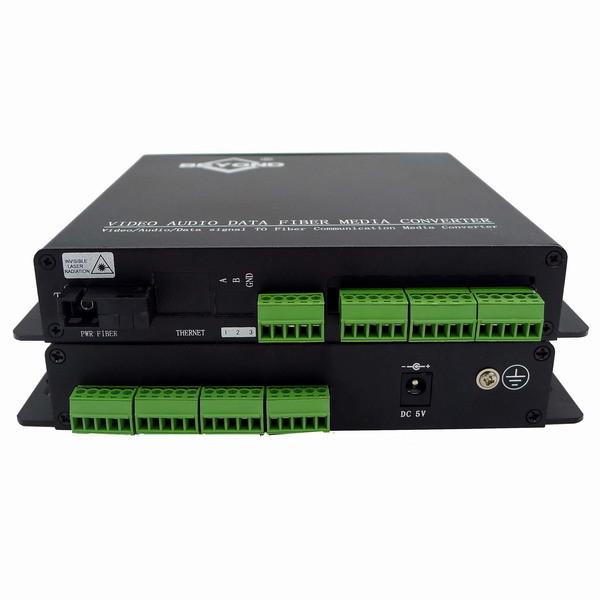

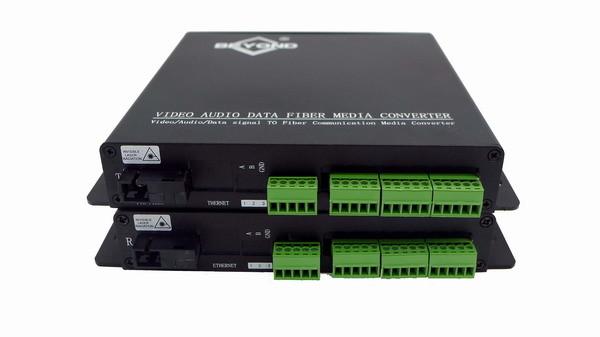

8 BIDI Contact Closure To Fiber Optic support 8 Channels BIDI contact closure over one multi-mode or single-mode optical fiber. These fiber optic transmitterand fiber optic receiver are typically used in applications with Access Control System, Alarm Event Triggering, Building Automation and Environmental Control Systems, Fire & Alarm Systems, PIR signal Transmission, Traffic Signal Control Equipment, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Features

• Support Point-to-Point or Daisy-Chain connection
• Dry Contact Closure or TTL data over one fiber
• Multimode Fiber Support for Distances up to 2 km
• Single-Mode Fiber Support for Distances up to 100 km
• LED Status Provide Rapid Indication of Operating Parameters
• No EMI or RFI and no ground loops
• Stand alone or rack-mount
• Produce according to customer's specifications,providing OEM

Opitcal:

Wavelength

1310nm&1470nm~1610nm

Output Power

-14~ -8dBm / -5~0dBm

Optic fiber

50/125u multimode,62.5/125u multimode,9/125u single mode

Rx sensitivity

-30dBm

Optical connector

FC,ST,SC (optional)

Distance

0~2KM (MM) / 0~100KM (SM)

Contact Closure:

Connector

Standard terminal lead

Signal input

alarm, Binary input, support TTL,RS-232/422/485 or passive dry Contact Closure

Signal output

Arbitrary alarm, Binary output, support TTL,RS-232/422/485 or relay output

Electrical & Mechanical

Input Power Requirements:

DC 5V@2A

Power Adapter:

AC 90V~240V

Power Consumption:

< 5W

Stand-Alone Dimensions:

175mm×154mm×30mm

Shipping Weight:

(include Transmitter & Receiver ) 1.5kg

Environmental

Operating Temperature:

-20°C ~ +75°C

Storage Temperature:

-40°C ~ +85°C

Relative Humidity:

0% ~ 95% (non-condensing)

MTBF:

>100,000 hours
