Konmax Cold Drink Dispenser Description:

1.The machine can make hot and cold milk, fruit juice and other hot and cold drinks, easy to use, clean and it is an ideal equipment for the catering industry.
2.This machine adopts stainless steel evaporator, heat transfer effect is good or cool down fast.

3.This machine has small size, light weight, low power consumption, easy operation and so on.
4.Food-grade high-density crack PC capacity tank, safe, easy to clean
5.Split out the material switches to ensure that pollution-free frozen drinks.
6.Humanized design, computer control panel, 304 # stainless steel shell, beautiful and durable
7.Spray-type design, application and strong bond, particle big drinks, such as soy milk, pearl milk tea and so on.
8.Power, voltage, frequency is up to the customer's requirements.
9.Wrap-around stainless steel evaporator, cooling the strong rapid temperature equilibrium.
10.Closed-end high back pressure compressors, energy-saving quiet, noise less than 55db
11.Using R134A refrigerant, anaerobic environment

Konmax Cold Drink Dispenser Application:

Hotel use ,restaurant,store , supermarket,office ,fruit shops ,school ,resturants etc

Konmax Cold Drink Dispenser Specification:

Konmax Cold Drink Dispenser Advantage:

1, Functions: Air cooling, Mixing and Spraying way, cooling and heating system are available.
2, High quality stainless steel body hermetic compressor.
3, Reliable high effciency pump and control panel bring lower noise and long-lasting use.
4, Automatic control.
5, Super strong tanks non-toxic Polycarbonate. Acid, alkali and low temperature resistant.
6, Acid, alkali and low temperature resistant.
7, High capacity.
8, Every machine will attach the free parts.

Konmax Cold Drink Dispenser Installing Methods and Notices:

1: To install it ,pls choose the site which is flat,fixable and can avoid the direct sunshine in sunmmer.

2:Around the juicer, should have 150mm up room to make the air circulating and make sure the machine can run effectively.

3:Before installing, pls check the supply whether confirm the requirements or not. The power supply cable is not too thin or too long. The cross section of cable should be 1.5-2.5mm, Voltage is mounted on the fixed position with fuse which will keep the users safety,it must have reriable grounding. The socket should be mounted on the fixed position with fuse which keep the machine running safety.

4;To make the fix position for juicer,should make its frond lower and back higher(to ajust the foot of bottom can do it), then the water in the salver can flow into the box through the hose.

Konmax Cold Drink Dispenser Detailed Photo:

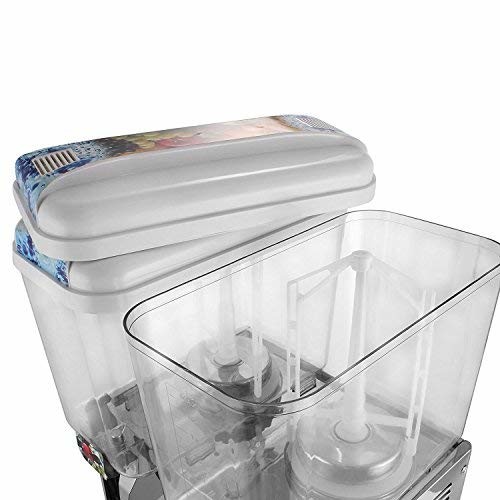

Food grade PC tank for bowl material ,it is safe to drink

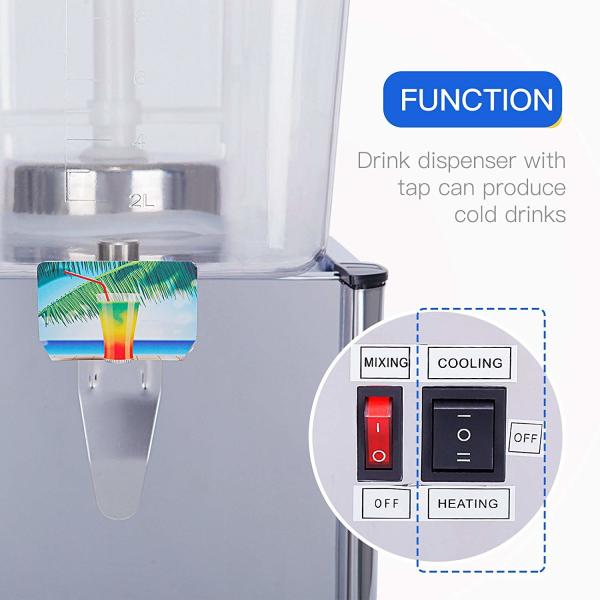

Function : mixing , cooling and heating for your choose

Easy to operate buttons

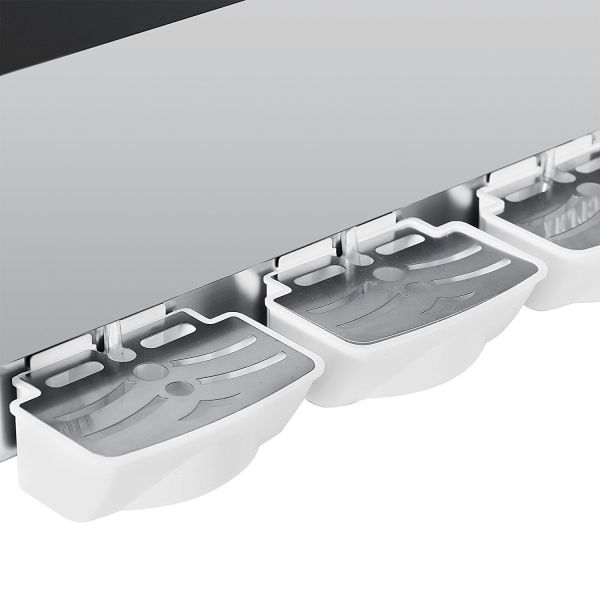

Drip tray design :which is more convenient to use, can carry more leaking materials, and is cleaner and more hygienic.

For how to use the juice dispenser machine please check the PDF file:

How to use the cold beverage machine.pdf
