Full Automatic Electric Commercial Fruit Juicer Machines , Juice Extracting Machine
Konmax Orange Juicer Machine Specification:
1.Power supply:220--230V 50HZ /110--120V 60HZ
2.Power consumption:120W
3.Size of orange required:40--80mm
4.Output: 22-25 oranges/per minute
5.Machine Size: 400L*300W*770H mm(length*width*height)
6.Net Weight: 42kg
7．Security:　Safety cut out switches
The machines will stop operating without the cover place.
8. ConVeyance: Qty/20' FCL: 120sets

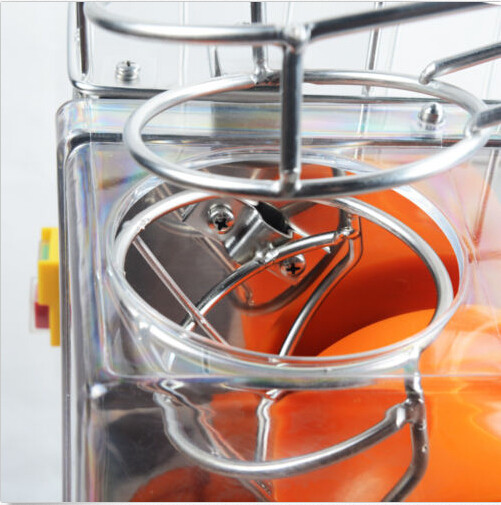

Konmax Orange Juicer Machine Detailed Photo:

Konmax Orange Juicer Machine Accessory:
A pair of peeling implement(two),one of 5A fuze,one of cross implement, one of 8-10mm spanner,one of electronic supply.

Konmax Orange Juicer Machine Safety Notice:

Avoid dangerous please followed by the next step:
1. Ensure read and understand all the explanations.
2. Only use the specifically marked AC power source(230V/50HZ,120V/60HZ).
3. For the safety purpose,only use connect power to the grounded connector plugs.
4. Ensure machine is disconnected from main power and turn off the power before you clean it.
5. Do not touch the power connect plug.
6. Only used for citrus and lemon. Do not used for other fruit.
7. Do not use for peach, mango etc, in case it damage.
8. Do not put your hands in the machine while it working.

Konmax Orange Juicer Machine Operation Instruction:
1. Place the machine on the stable table, connect power plug to a grounded connector plug.
2. Safety check before you turn on the machine
1) If the nut (4 units) screw down properly.
2) If place the knife rest correctly (press it on the bottom).
3) Place the cover on, screw down two side nut (2 units).
3. It can be used after turn on the power.
4．Put antisepsis and washed fresh oranges (40-80mm) in, the machine will peel the skin, producing
fresh juices, filtrate automatically
