Lemon Squeezer Commercial ,Orange Juicer Machine Table Top With Automatic Feeder For Bar
Konmax Orange Juicer Machine Specification
1.Power supply:220--230V 50HZ /110--120V 60HZ
2. Power consumption : 120W / 250w
3. Size of orange required : 40--80mm
4. Output : 20 oranges/per minute
5. Machine Size : 450*450W*600H mm (length*width*height)
6. Net Weight : 41 kg
7 ． Security : Safety cut out switches
The machines will stop operating without the cover place.
8. ConVeyance:Qty/20' FCL: 218sets

Konmax Orange Juicer Machine Detailed Photo:

Orange juice machine squeezed kits are food grade pc and can squeeze 40-90 mm oranges

upgrade fruit basket can hold 10 kg oranges

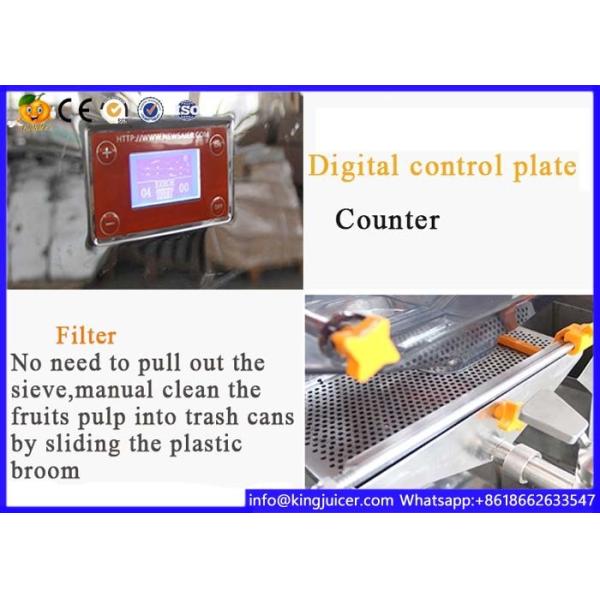

Counting function to help you calculate the oranges squeezed

Slide filter to make juice taste well and not stuck the tap

Konmax Orange Juicer Machine Accessory:
Two protruding balls ,blade compages ,concave squeezer ,peelers ,peeler seats ,plastic veils ,pressing screw ,two concave balls .

Konmax Orange Juicer Machine Production Scene:
Orange juicer machine production procedure :
1) Laser cutting : we use our laser cutting machine to cut the 3mm thickness stainless steel 304 into different size due to different model
2)Punching : we use punching machin to make punching on the stainless steel , the punching position is fixed and measured by machine .
3)Bending :because the orange juicer machine require different angles , so we need bend the stainess to meet the demand .
4)Moulding : we use injection moulding machine to make the spare parts like protruding ball , concave squeezer ,peeler etc .
5)Welding : weld internal parts like motor case etc .
6)Assembling :assemble the parts together .
7)Testing :all machine before exporting we need test 2 days , using oranges squeezing and see how it is working.
8)Washing :before packing we need washing the machine clearly and make it clean .
9)Packing :usually we put foam inside the carton and seal the carton outside , if you need wooden packing we can meet you demand .

Konmax Orange Juicer Machine Application Photo:

Konmax Orange Juicer Machine Operation Instruction:
1. Place the machine on the stable table, connect power plug to a grounded connector plug.
2. Safety check before you turn on the machine:
1) If the nut (4 units) screw down properly.
2) If place the knife rest correctly (press it on the bottom).
3) Place the cover on, screw down two side nut (2 units).
3. It can be used after turn on the power.
4. Put antisepsis and washed fresh oranges (40-80mm) in, the machine will peel the skin, producing fresh
juices,filtrate automatically
