Electric Orange Juicer Machine / Fruit Extractor Machines Table Top

Konmax Orange Juicer Machine Description:
1.It uses centrifugal principle to divide the juice and residue auto segregate.The machine makes it possible to present fresh and nutritious juice to the user instantly and continuously.
2.There are unlimited combinations of juices for the enterprising operator with exotic puree that may be added for an extended menu.
3.The machine meets the requirement of modern life styles
Note: Dia 40~90mm oranges suitable for the juicer. The operation is simple and convenient. The rate of the juice is about 40%.
The juicer is small and easy to operate, it can produces instantly. The juice is original and tasty, green and trendy

Commercial orange juicer can be used in wide range like bar,restaurant,drink shop , home ,supermarket ,gymnasium,entertainment ,hospital etc

Konmax Orange Juicer Machine Specification:

1.Power supply:220--230V 50HZ /110--120V 60HZ
2.Power consumption:120W
3. Size of orange required:40--90mm
4. Output: 22-25 oranges/per minute
5.Machine Size: 400L*300W*770H mm(length*width*height)
6. Net Weight: 45kg
7．Security:　Safety cut out switches
The machines will stop operating without the cover place.
8. ConVeyance:Qty/20' FCL: 120 sets

Konmax Orange Juicer Machine Operation Instruction:

1. Place the machine on the stable table, connect power plug to a grounded connector plug.

2. Safety check before you turn on the machine:

1) If the nut (4 units) screw down properly.

2) If place the knife rest correctly (press it on the bottom).

3) Place the cover on, screw down two side nut (2 units).

3. It can be used after turn on the power.

4．Put antisepsis and washed fresh oranges (40-80mm) in, the machine will peel the skin, producing fresh juices, filtrate automatically

Konmax Orange Juicer Machine Cleaning Instruction:
1. Begin by unplugging the juicer.
2. Disassemble the juicer completely.
3. Dump the bin or container that catches the pulp and scrape it out with a spatula.
4. Rinse each piece under running water.
5. Use the small brushes to clean the small areas, there are small brushes available such as nail brushes

that can be used to clean the nooks and crannies
6. For more thorough cleanings, fill the sink with water and add dish soap.

7. Soak each piece for a few minutes and then wash with a brush or soft cloth.
8. Pay special attention to the mesh strainer as this can quickly build up with pulp and juice debris. Do not

allow the juice particles to dry in this fine screen or they will be difficult to remove.
9. Use a soft cloth or sponge moistened with water to wipe down the machine itself. Although the juice is

designed to go through a certain route in the juicer, juice and pulp will end up everywhere.
10. Allow all of the pieces to dry completely. It is fine to set them on a towel or drying rack.
11. Reassemble the juicer.

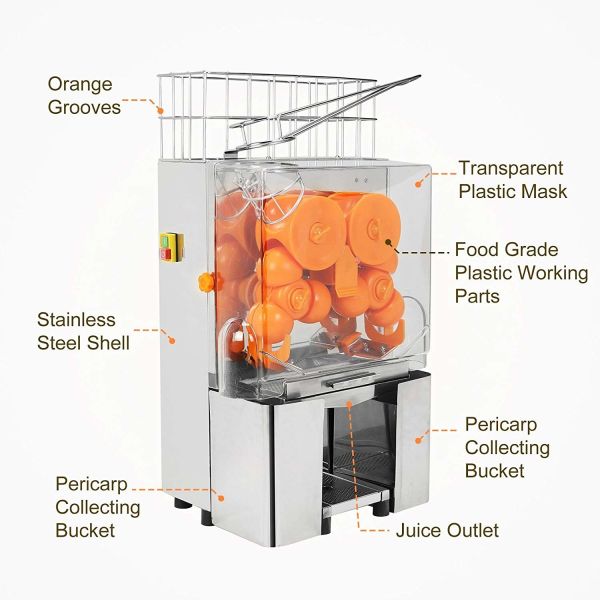

Konmax Orange Juicer Machine Detailed Photo:

For more information about how to operation the machine please check the manual :

Commercial Fresh Orange Series Fresh Orange XC-2000E -1.pdf
