Orange Squeezer Juicer Fresh Orange Juicer Machine Industrial Juice Extractor

Konmax Orange Juicer Machine Description:

1)Orange juicer is a machine which extracts juice from fresh oranges,lemon , pomegranate.
2)The orange juice is different from juicer you buy from market, it is totally natural, fresh and good taste, contain no preservatives, stabilizers, pigment and essence.
3)The machine is extrusion type. When clean orange was feed into, the machine doing peeling, extracting and screening work, all procedures are automatically. Final production orange juicer is pure and good taste.
4)This orange juicer has a nice appearance and advanced inner structure, parts that contact with fruit and juice were made of stainless steel or wear-resisting food-grade PC plastic, not harmful to health.

Konmax Orange Juicer Machine Feature:

1. Non juncture whole stainless steel body.

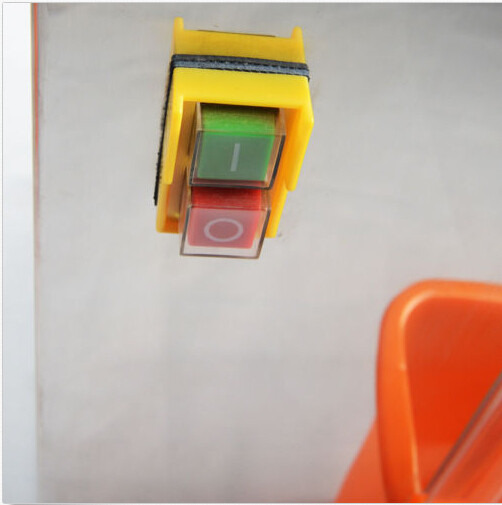

2. Touch Switch,Internal circuit board.
3. Reasonably design ,small size, light weight,both exterior and interior structure are advanced.
4. Stainless steel and high-grade plastic wear PC.
5. Popular in drink shops,fruit shop,restaurants,hotels,bars.
6. Woodern case packing,2 set with pallet packing.
7. The machines will not working without the cover place.

Konmax Orange Juicer Machine Specification:

1.Power supply:220--230V 50HZ /110--120V 60HZ
2.Power consumption:120W
3.Size of orange required:40--80mm
4.Output: 22-25 oranges/per minute
5.Machine Size: 400L*300W*770H mm(length*width*height)
6.Net Weight: 42kg
7．Security:　Safety cut out switches
The machines will stop operating without the cover place.
8. ConVeyance: Qty/20' FCL: 120sets

Konmax Orange Juicer Machine Operation Steps
1) Place the machine on the table after it is taken out of the box; Make sure that no parts is missing on the box.
2) Connect power plug to a power/socket, and turn on the power switch, run the machine without load.
This is to check that machine run normally and does not make any strange noise.
3) Then, check whether the waste bins and tray are place in the correct positions, Then turn off the machine.
4) Put the cup on the tray to get juice.
5) Put pre-washed oranges into the top basket before squeezing.
6) Turn on the switch, and let the machine run without load for a while. Then put oranges into feed rail,
and oranges will roll into concave roller, and cut into two half by knife assembly, and squeezed by convexroller.Juice flowing down the cup.
7) To stop squeezing, turn off the power switch.

Konmax Orange Juicer Machine Detailed Photo:
