Specifications
Brand Name :
HANJIU
Model Number :
CBT-E3, CBF, CBG-F3, GPC4, G5
Certification :
CE
Place of Origin :
CHINA
MOQ :
50 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Sets Per Year
Delivery Time :
10-15 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Product Name :
Hydraulic Gear Pump
Theory :
Rotary Pump
Pressure :
High Pressure
Displacement :
3~30ml/r
Max.pressure :
15-20Mpa
Shaft :
Tang claw shaft,Tappered key
Description

Massey Ferguson Hydraulic Pump for 295, 297, 610, 620, 650, 680

We design & make huge range of gear pumps with many options.
Group 1, group 2 and group 3 gear pumps, single & multiple SAE A and SAE B, single and multiple.
Used on tractor of , , Massey Ferguson, , David Brown, Deutz, Fendt, Fiat, Ford, Lamborgini, Same, Cat, Komatsu, , etc.
Hanjiu CBT series hydraulic pump can be used on Massey Ferguson tractor 295, 297, 610, 620, 650, 680.

Hanjiu hydraulic products are suitable for various brands of tractors, excavators, forklifts, etc., widely used in various agricultural, forestry and construction machinery.

Introduction and Features:

  1. Hanjiu pumps and motors are high volumetic efficiency and long life achieved by smart design and accurate control of machining tolerances
  2. Fine finished steel gears,Hi-resistant Extruded alluminum body, Hi-resistant Die cast alluminum cover(BAP2) or cast-iron cover(BHP2), Low-friction die casting alluminum bushes,and DU slide bearing,all these keep low pulsation,low noise and long life.
  3. Full option of shafts,flanges and ports as for European,German and America standards
  4. Nitrile seals as standard and viton seals available for high temperature application,high pressure shaft seals are also available.
  5. Motor and bi-direction pump available
  6. Available as multiple pump either of the same or different group
  7. We test 100% of the pumps and motors after assambling to ensure the high standard performance.
  8. Our team have worked in hydraulics for about 20 years. Our technical people are very skilled in producing gear pump.
  9. We have supplied to many world-famous company all over the world.

Massey Ferguson Hydraulic Pump for 295, 297, 610, 620, 650, 680

Massey Ferguson Hydraulic Pump for 295, 297, 610, 620, 650, 680

Specifications:

Type Displacement Max.pressure Max.speed Min.speed
P1 P2 P3
cm3/rev bar bar bar r/min r/min
CBT 3 270 285 300 4000 800
CBT 4 270 285 300 4000 600
CBT 6 270 285 300 4000 600
CBT 8 270 285 300 3500 500
CBT 10 270 285 300 3000 500
CBT 12 270 285 300 3000 500
CBT 14 250 265 280 4000 500
CBT 16 250 265 280 4000 500
CBT 18 250 265 280 3600 400
CBT 20 220 235 250 3200 400
CBT 22 220 235 250 3000 400
CBT 25 200 215 230 3000 400
CBT 28 180 190 200 2500 400
CBT 30 160 170 180 2500 400

Hanjiu technology co., LTD. Is an enterprise specializing in the production of BM series cycloid hydraulic motor, BZZ full hydraulic steering gear, hydraulic gear pump, FK combination valve block and other hydraulic components. The products are widely used in engineering machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery military engineering and other fields.

Massey Ferguson Hydraulic Pump for 295, 297, 610, 620, 650, 680

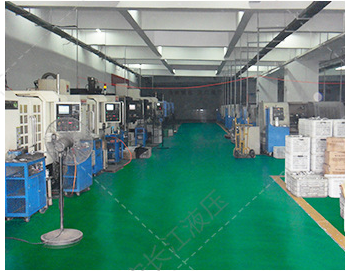

We have a complete set of product quality assurance system from employees, raw materials entering the factory, parts processing, equipment testing and product delivery. With high quality, friendly price and considerate service, the products are favored by users at home and abroad. The company passed the iso9001:2008 quality management system certification in 2013.

Massey Ferguson Hydraulic Pump for 295, 297, 610, 620, 650, 680

Hanjiu Hydraulic gear pump for any hydraulic system, welcome advice.
