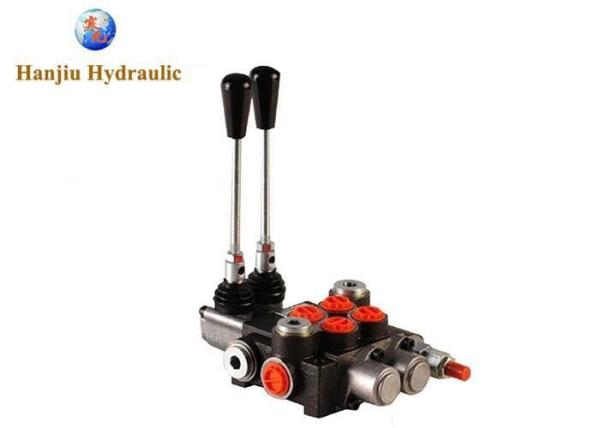

40L/Min Monoblock Hydraulic Directional Control Valve for Agriculture Machine
40L/Min Monoblock Hydraulic Directional Control Valve for Agriculture Machine
40L/Min Monoblock Hydraulic Directional Control Valve for Agriculture Machine
40L/Min Monoblock Hydraulic Directional Control Valve for Agriculture Machine
40L/Min Monoblock Hydraulic Directional Control Valve for Agriculture Machine
40L/Min Monoblock Hydraulic Directional Control Valve for Agriculture Machine
Specifications
Brand Name :
HANJIU
Model Number :
P40
Certification :
CE
Place of Origin :
HANJIU
MOQ :
30 pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,000 Pieces a year
Delivery Time :
10-15 working days
Packaging Details :
Carton Packing, and finally with a tray or wooden box
Product :
Monoblock Valve
Type :
Manual Valve
Model :
P40
Application: :
Agricultural machine
Warranty :
12 months
HS Code :
8481201000
Description

40L/Min Monoblock Hydraulic Directional Control Valve for Agriculture Machine

P40 series valves with middle-high pressure monoblock construction is developed based on Europe
technology.
1. Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be
returned.
2. Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working
pressure.
3. Oil way: Parallel circuit, power beyond option
4. Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
5. Valve construction: monoblock construction, 1-7 levers.
6. Spool Function: O,Y, P,A.
7. Option: Hydraulic lock is available to be added on A and B port.
8. Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric
control and etc.


Functions and features

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
2. Work group number can be added according to demand, 7 spools at most.
3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.

Application:


This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.

40L/Min Monoblock Hydraulic Directional Control Valve for Agriculture Machine

40L/Min Monoblock Hydraulic Directional Control Valve for Agriculture Machine

Major Technical Data
Rated flow rate: 40 L/min
Maximum flow rate: 50L/min
Maximum pressure at P port: 310 bar
Maximum pressure at A/B port: 310bar
Maximum pressure at T port: 25 bar
Internal leakage(at 70 bar):A/B to T 30-35 cc/min
Temperature range of the hydraulic oil
with NBR(BUNA--N)seals: -20ºC-80ºC
with FPM(VITON)seals -20ºC-100ºC
Spool stroke(1/2 position): +7/-7mm
With floating function (1/2 and F position) +7/-7-9mm
Recommend temperature range: -40ºC-60ºC

Shijiazhuang Hanjiu Technology Co., Ltd. We are specialized in producinghydraulic orbital motors, hydraulic steering Unit and other hydraulic products.
The products can be widely used for different kinds of Construction Equipments, Heavy equipments,Agricutural machines and Industrial machines etc.
Machines like , Komatsu, Hitachi, Volvo, , , New holland, Massey ferguson, Fiat, MTZ, etc.
Overseas market like Southeast Asia, Middle East, South America, North America, Europe, Africa and other countries and regions.

40L/Min Monoblock Hydraulic Directional Control Valve for Agriculture Machine
