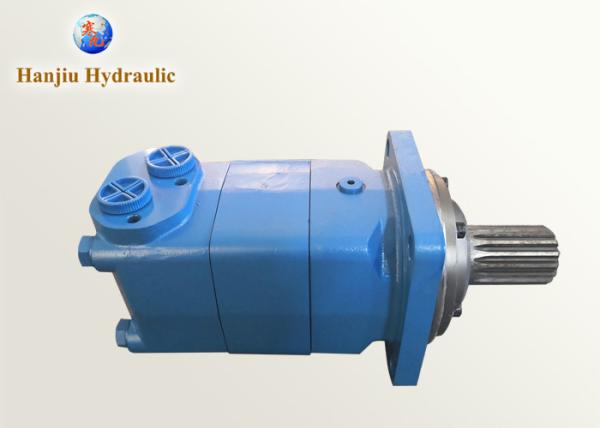

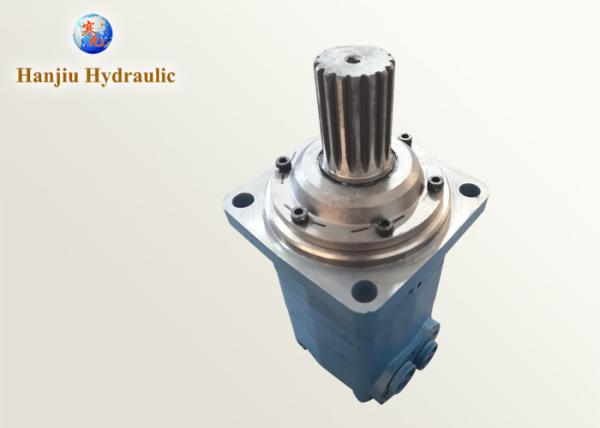

High Torque Hydraulic Drilling Rigs Motor BMT / MT / OMT315 151B3015
High Torque Hydraulic Drilling Rigs Motor BMT / MT / OMT315 151B3015
High Torque Hydraulic Drilling Rigs Motor BMT / MT / OMT315 151B3015
High Torque Hydraulic Drilling Rigs Motor BMT / MT / OMT315 151B3015
High Torque Hydraulic Drilling Rigs Motor BMT / MT / OMT315 151B3015
High Torque Hydraulic Drilling Rigs Motor BMT / MT / OMT315 151B3015
Specifications
Brand Name :
HANJIU
Model Number :
BMT315
Certification :
CE
Place of Origin :
China
MOQ :
5 Pieces
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
60000 Pieces One Year
Packaging Details :
Carton Box
Product Name :
Hydraulic Drilling Rigs Motor BMT315
Speed :
Low Speed High Torque
Features :
High pressure oil seal
Displacement :
160cc--800cc
Application :
Hydraulic Drilling Rigs
Description

High Torque Hydraulic Drilling Rigs Motor BMT / MT / OMT315 151B3015

♦ We are professional manufacturer produce Hydraulic Orbital Motors.

♦ Hanjiu Hydraulic Motors match than ,M+S and Brevini hydraulic motors.
♦ Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
Hydraulic Drilling Rigs Motor Displacement
BMT 160cc
BMT 200cc
BMT 250cc
BMT 315cc
BMT 400cc
BMT 500cc
BMT 630cc
BMT 800cc

1. Characteristic Features

• High starting torque

• High pressure oil seals

• Low Speed High Torque

• Low noise level

• Longer life expectancy

3. Specification

Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)		 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)		 cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25


High Torque Hydraulic Drilling Rigs Motor BMT / MT / OMT315 151B3015

4. Application

Hydraulic Drilling Rigs

5. WorkShop

High Torque Hydraulic Drilling Rigs Motor BMT / MT / OMT315 151B3015
5. Hanjiu Exhibition

1.

ITALY BOLOGNA EIMA INTERNATIONAL AGRICULTURAL AND GARDENING MACHINERY EXHIBITION

NOVEMBER 9 - 13,2016

BOOTH NO. : 18BIS - C14

2.

AGRITECHNICA - THE WORLD’S NO.1

NOVEMBER 12 - 18,2017 HANOVER,GERMANY

BOOTH NO. : 15B14

3.

IRAN AGRISHOW 2018

FEBRUARY 21 - 24,2018 TEHRAN,IRAN

BOOTH NO. : HALL 8 - 9,STAND 31

4.

KONYA 2018 AGRICULTURE

MARCH 20 - 24,2018 KONYA,TURKEY

BOOTH NO. : HALL 5,STAND 25

5.

INTERMAT

APRIL 23 - 28,2018 PARIS,FRANCE

BOOTH NO. : 5A C008

High Torque Hydraulic Drilling Rigs Motor BMT / MT / OMT315 151B3015

Shijiazhuang Hanjiu Technology Co.,Ltd

Sale Director // E-mail: sales05@sjzhjsm.com // Skype: Simon-Hanjiu Hydraulics // WhatsApp: +86 15530109495 // Website:www.hjhydraulic.com
