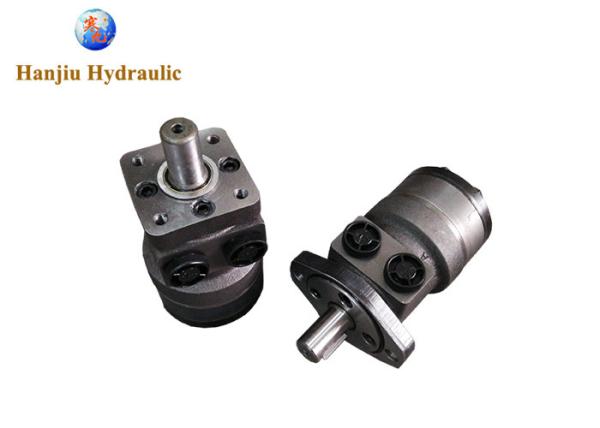

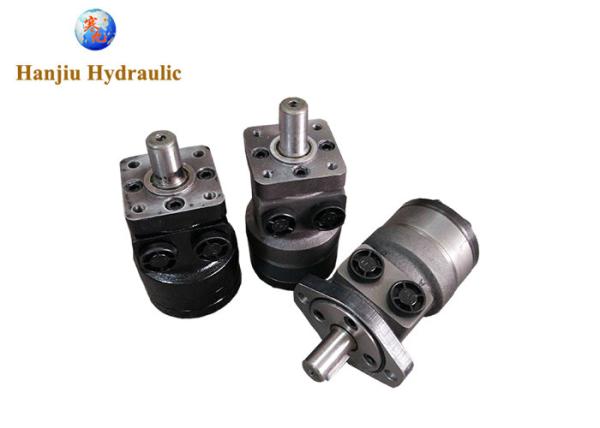

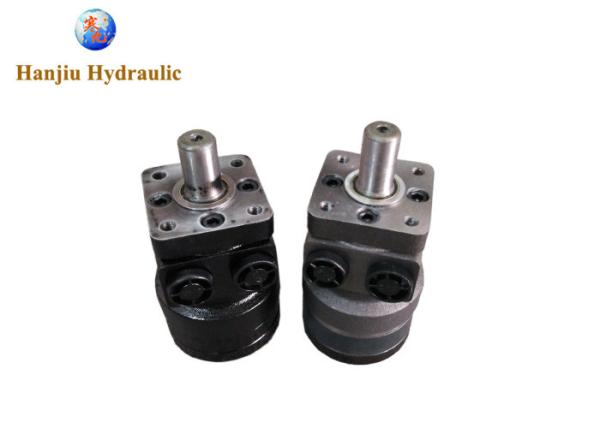

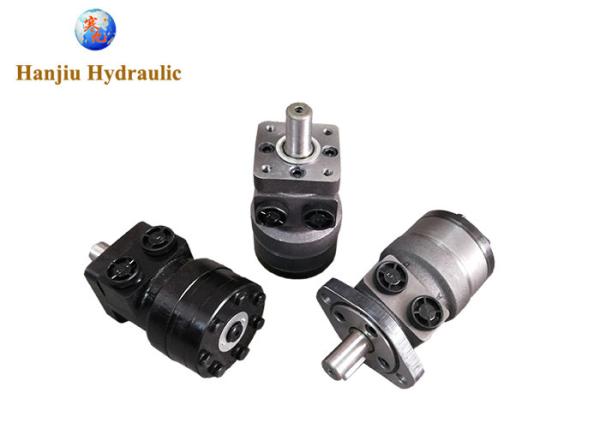

Hydraulic Motor Heavy Duty Equipment Small Drive Motors BMR 2- Bolt Mounting
Hydraulic Motor Heavy Duty Equipment Small Drive Motors BMR 2- Bolt Mounting
Hydraulic Motor Heavy Duty Equipment Small Drive Motors BMR 2- Bolt Mounting
Hydraulic Motor Heavy Duty Equipment Small Drive Motors BMR 2- Bolt Mounting
Hydraulic Motor Heavy Duty Equipment Small Drive Motors BMR 2- Bolt Mounting
Hydraulic Motor Heavy Duty Equipment Small Drive Motors BMR 2- Bolt Mounting
Hydraulic Motor Heavy Duty Equipment Small Drive Motors BMR 2- Bolt Mounting
Hydraulic Motor Heavy Duty Equipment Small Drive Motors BMR 2- Bolt Mounting
Specifications
Brand Name :
HANJIU
Model Number :
BMRS160-H2AG-00
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
70000 pieces per year
Delivery Time :
25 - 35 work days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Type :
replace Motor Hydraulics
Brand :
HANJIU
Model No. :
BMRS160-H2AG-00
Displacement :
160 ml/r
More Size :
50ml, 80ml, 100ml, 125ml, 200ml, 315ml, 400ml, 500ml
Speed :
378 RPM to 475RPM
Flow :
60 Lpm to 75 Lpm
Application :
Heavy duty equipment, Ag machinery
Description

Hydraulic Motor Heavy Duty Equipment Small Drive Motors BMR 2-bolt mounting

Quick details:

  • we produce hydraulic motors for digging, drilling, rolling, lifting applications
  • variety version available from BMM, BMP, BMR, BMH, BMS, BMT, BMV, BMK2, BMK6, BMER
  • variety types with same specifications with most Eaton Char-lynn, , Parker, and many more
  • Speed: 200 RPM to 1650 RPM
  • Flow: 240 Lpm to 55 Lpm
  • Power: 5.0 KW - 56 KW
  • Torque: 55 Nm - 2400 Nm
  • meet all application on Heavy duty equipment, Ag machinery, Industrial

BMR introduction:
BMR series motor replace OMR series, Eaton S & T series, M+S MR series.

Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

Specification Data of Hydraulic Motors
Distribution type Model Displacement Max. operating pressure Speed range Max. output power
(cm3/rev.) (MPa) (rpm) (kW)
Axial distribution BMM 8-50 14 30-1950 3.2
BMP 36-400 16.5 30-879 10
BMR 36-375 20 30-970 15
BMH 200-500 20 30-430 17
Specification Data of Hydraulic Motor
Distribution type Model Displacement Max. operating pressure Speed range Max. output power
(cm3/rev.) (MPa) (rpm) (kW)
Disc distribution BMS 80-475 22.5 30-800 24
BMT 160-800 24 30-705 35
BMV 315-800 28 10-446 43

Features:

Orbital Motors Low speed high torque, widely used for lifting, windling, load handling, delivery and many more power transmission applications.

From big to small, multi types, sizes, key and shaft available, small volume, light weight, save valuable space, High torque, High power transmission, long life under extreme operation conditions.

Displacement from 8ml/r to 1000ml/r, speed from 100RPM to 2000RPM, flow from 40Lpm to 225Lpm, working pressure from 9MPa to 30MPa, torque from 75N*M to 3000N*M.

Our motors interchangeable with most common brands and models of domestic and other European manufactures, simialr performance more moderate prices.

We always do our best to keep excellent prices with great quality, and are constantly investigating new methods of quality improvement. We can provid you better hydraulic solutions.

Applications:

This BMR series hydraulic motors is a slow speed high torque type hydraulic motors, they are widely used on Farmland irrigation winch, Towing and mooring winches, Cable Laying winch, Oceanographic research winch, Nautical equipment and winches for fishing boats, Winch as an anchor, Capestani, Special systems for subsea pipelay, Winch Wood from deforestation, Wood processing and cutting machines, Agricultural and forestry machinery, Construction machinery and platform, Ground care and Mowing machinery, etc.

Please do not hesitate to contact us for further information, inquiries or orders.

Thank you for choosing 'Hanjiu' Hydraulics.
