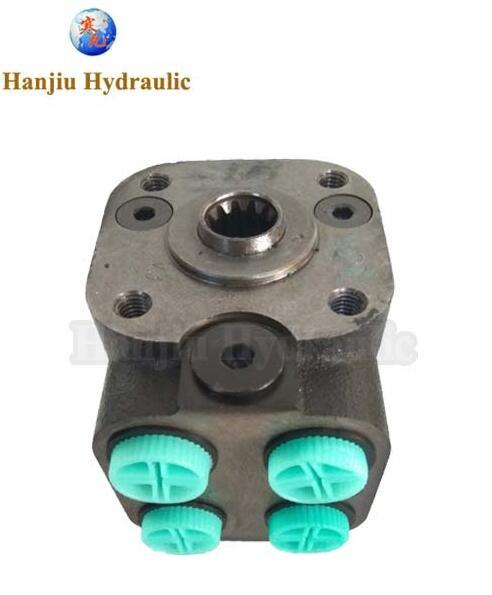

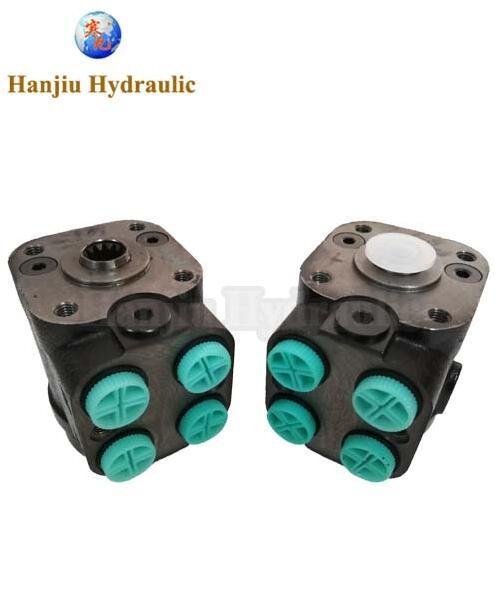

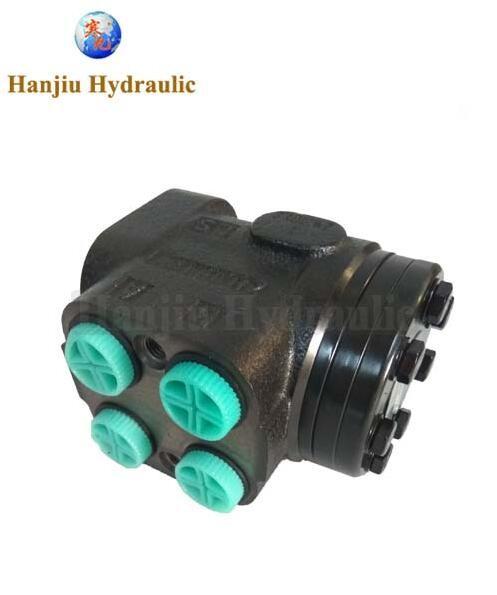

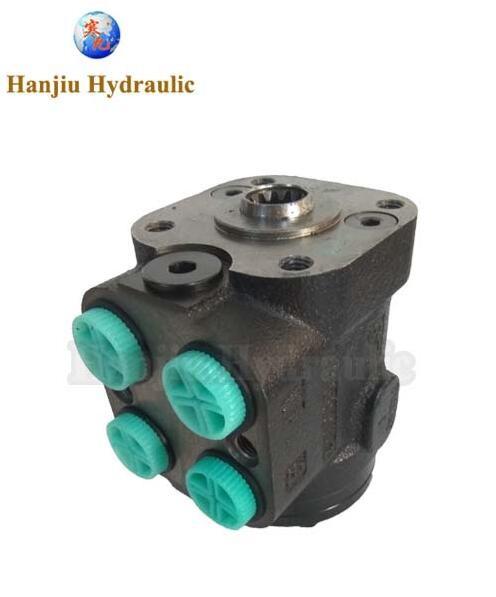

OEM Hydraulic Steering Unit For Steering Systems 15 MPa / 21 MPa Pressure
OEM Hydraulic Steering Unit For Steering Systems 15 MPa / 21 MPa Pressure
OEM Hydraulic Steering Unit For Steering Systems 15 MPa / 21 MPa Pressure
OEM Hydraulic Steering Unit For Steering Systems 15 MPa / 21 MPa Pressure
OEM Hydraulic Steering Unit For Steering Systems 15 MPa / 21 MPa Pressure
OEM Hydraulic Steering Unit For Steering Systems 15 MPa / 21 MPa Pressure
OEM Hydraulic Steering Unit For Steering Systems 15 MPa / 21 MPa Pressure
OEM Hydraulic Steering Unit For Steering Systems 15 MPa / 21 MPa Pressure
OEM Hydraulic Steering Unit For Steering Systems 15 MPa / 21 MPa Pressure
OEM Hydraulic Steering Unit For Steering Systems 15 MPa / 21 MPa Pressure
Specifications
Brand Name :
HANJIU
Model Number :
101s-63
Certification :
CE
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
200000 pieces per year.
Delivery Time :
15 - 25 Work Days
Packaging Details :
1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Product :
Hydraulic Steering Unit
Model No. :
101s-63
Displacement :
63 ml/r (cc)
Founction :
ON
Valves :
with check valve, safety valve and shock valves
Pressure set :
15 MPa/ 21 MPa
Shaft :
Inner 12 T
Ports :
3/4-16UNF O-RING
Description

OEM Eaton helm units replace for steering systems, 50cc, 63cc, and 75cc

This helm units is a special type to replace Eaton OEM helms to be used for Stern Drive OEM manufacturer and their steering systems. Displacement most used are 50cc, 63cc and 75cc.

We also make heml units of different type of M+S, , Eaton.
We produce orbitrols for tractor, combines, loaders, forklifts, and this 101S type are most popular type to be widely used on Case, Claas, David Brown, Deutz, Fendt, Massey Ferguson, Fiat, , New Holland, Komatsu, Volvo, , ...
Excellent performance compatible with , Eaton, M+S, also 100% replace OEM parts you may find on original machines.

Technical data sheet:

Parameters Series
101S-*-***-**-*
Function code 1,2,4 1,4
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400
Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 32 40
Max.input pressure(Mpa) 16
Relief Valve Pressure Settings ( MPa) 06,07,08,10,12,14,15,16
Shock Valve Pressure Settings ( MPa) 12,13,14,16,18,20,21,22
Max.cont.back pressure 2.5
Weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176

101S series orbital steering valve is with relief valve ,suction valve, inlet check valve intergrated,and different valve can be assembled freely, compact, more convenient, fitting for European and American standards. Widely applied to low speed and heavy vehicles , construction machinery, tractor, forklift, digger, loader, helm control.
