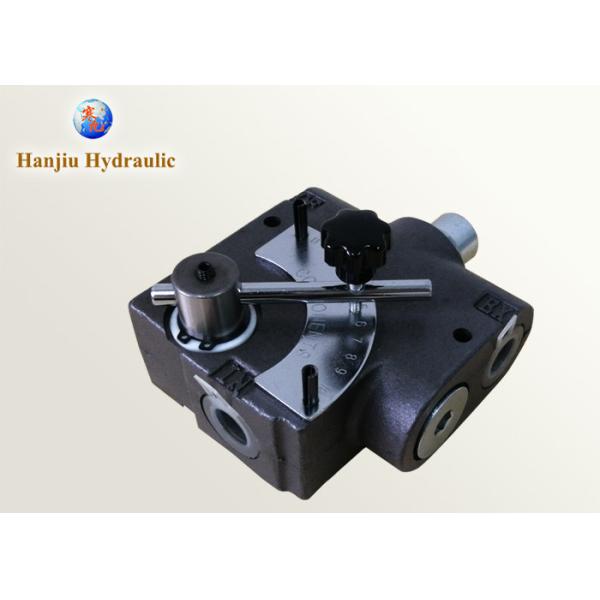

3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
Specifications
Brand Name :
HANJIU
Model Number :
LKF-60
Certification :
CE
Place of Origin :
CHINA
MOQ :
30 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000000 sets per year
Delivery Time :
20 - 25 work days
Packaging Details :
Carton Packing and finally with a Tray, or Wooden Box
Products Name :
Flow control valve
Model No. :
LKF-60
Port size :
1/2'' - NPT
Flow :
0-60 L/min (0-16gpm)
Standard pressure :
210 bar (21 MPa)
Description

Flow control valve, 3 port Adjustable flow control valve, LKF-60

This LKF-60 Flow Control Valves, is one special type Pressure Compensating Flow Control Valve.

LKF model is a full range pressure compensating variable flow control. It is designed so that the crifice area varies as the lever is rotated. The outlet flow is smooth and constant regardless of the pressure on the control flow or excess flow ports. An adjustable vall spring relief valve allows for pressure compensated how up to the pressure on the relief valve. Relief valves are preset at 1500 psi and filed adjustable from 750 to 3000 psi.

Parameters

Model: Oil port Flow Pressure
LKT-40-3/8NPT 3/8'' - NPT 0-30L/min (0-8GPM) 210 BAR
LKF-60-1/2NPT 1/2'' - NPT 0-60L/min (0-16GPM) 210 BAR
LKF-114-3/4NPT 3/4'' - NPT 0-114L/min(0-30GPM) 210 BAR

This valve can be used to alter the speed of a hydraulic motor or cylinder.

Hydraulic 3 port adjustable flow control can be used to alter the speed of a hydraulic motor or cylinder. Once set the pressure remains constant regardless of load variations (pressure compensated). All excess flow must be returned to tank.

Model that include a relief valve which is adjustable 1000 PSI to 3000 PSI, this allows protection for the 'CF' controlled port flowline. Plugging the excess flow port allows use with pressure compensated pumps.

3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader

3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader

3 Port Adjustable Hydraulic Flow Control Valve LKF-60 For Front Loader
