Smooth Operation Low Speed High Torque Hydraulic Motor Compact Volume BMH Motors
Smooth Operation Low Speed High Torque Hydraulic Motor Compact Volume BMH Motors
Smooth Operation Low Speed High Torque Hydraulic Motor Compact Volume BMH Motors
Smooth Operation Low Speed High Torque Hydraulic Motor Compact Volume BMH Motors
Smooth Operation Low Speed High Torque Hydraulic Motor Compact Volume BMH Motors
Smooth Operation Low Speed High Torque Hydraulic Motor Compact Volume BMH Motors
Smooth Operation Low Speed High Torque Hydraulic Motor Compact Volume BMH Motors
Smooth Operation Low Speed High Torque Hydraulic Motor Compact Volume BMH Motors
Specifications
Brand Name :
HANJIU
Model Number :
BMH
Certification :
CE
Place of Origin :
China
MOQ :
20 sets
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100,000 sets a year
Delivery Time :
10-15 working days
Packaging Details :
carton packging, and finally with a tray or wooden box.
Product Name :
high torque low rpm hydraulic motor
Warranty :
two years
Features :
Same as OMR/ Eaton S,t,w/ M+S MR
Displacement :
200,250,315,400,...
Applications :
Agricultural, Forestry, Marine, Construction, Ground Care, Industrial, ...
Description

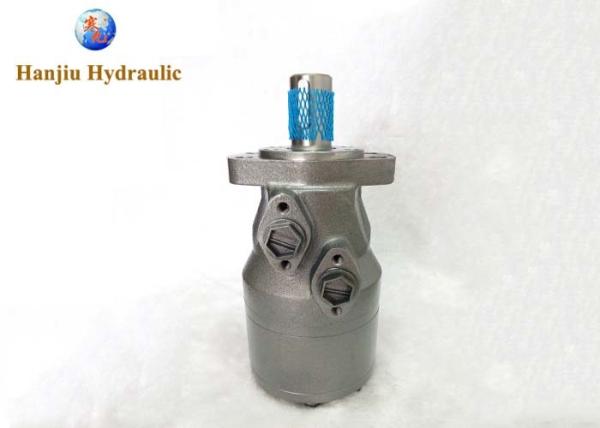

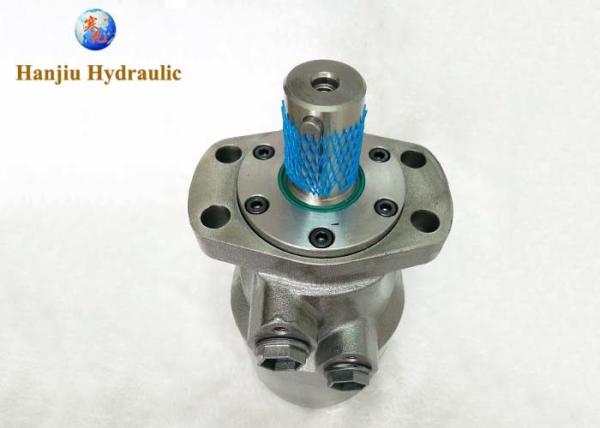

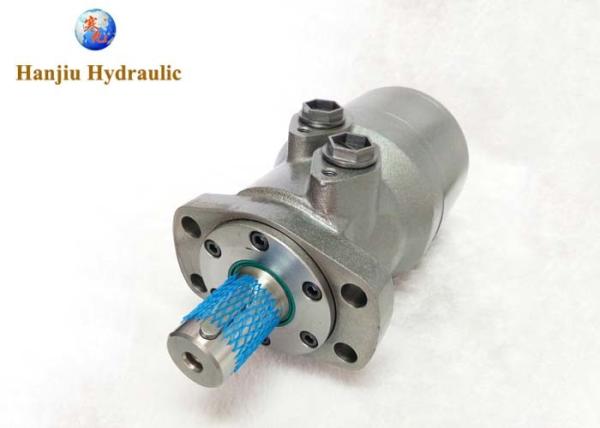

Low Speed High Torque Hydraulic Motor BMH Hydraulic Motors/Gerotor Motor

Hydraulic Orbit Motor BMH:

* Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.

* Shaft seal can bear high pressure of back and the motor can be used in parallel or series.

* Special design in the driver-linker and prolong operating life.

* Special design for distribution system can meet the requirement of low noise of unit.

* Compact volume and easy installation.

OMH hydraulic motor Main specifiction:

Type

BMH

200

BMH

250

BMH

315

BMH

400

BMH

500

Displacement

(cc/rev)

 203.2 255.9 316.5 406.4 489.2

Max torque

(n.m)

 cont 510 621 740 850 830
int 439 348 282 220 184

Max pressure

(mpa)

 cont 17.5 17.5 17.5 15.5 12.5
int 20 20 20 19 16

Max speed rate

(rpm)

 cont 366 290 236 183 155
int 439 348 282 220 184

Max flow

(L/min)

 cont 75 75 75 75 75
int 90 90 90 90 90

Weight(kg)

 10.5 11 11.5 12.3 13.0

Smooth Operation Low Speed High Torque Hydraulic Motor Compact Volume BMH Motors
