Specifications
Brand Name :
HANJIU
Model Number :
BMR / OMR / MR Motors
Certification :
CE
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
80000 Pieces Per Year
Packaging Details :
Carton Box
Product Name :
Low Speed High Torque Hydraulic Motor BMR
Features :
Same than ,M+S,Eaton Motor
Displacement :
50cc - 500cc
Application :
Drilling rig ,Harvesters, Augers, Conveyors
Description

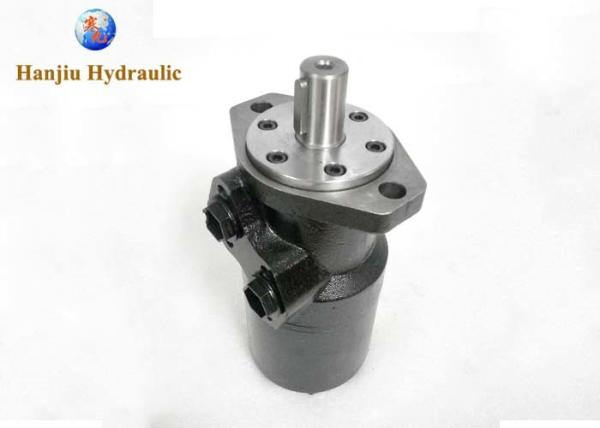

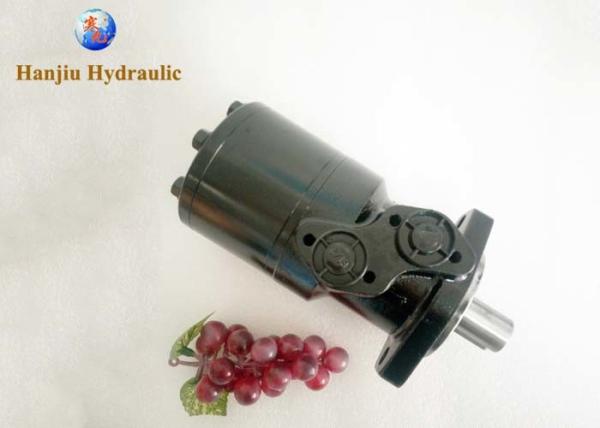

Low Speed High Torque Hydraulic Motor BMR100 / BMR160 / BMR250 / BMR315 Motors

1. Characteristic features

1. The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.


2. With the axial oil distribution structur, it is of smaller size and less weight.


3. With two inner check valves, no drain connection.


4. With cycoid group with the roller, it has a small friction nd high mechanical efficiency.

2. Specification

Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

Professional Low Speed High Torque Hydraulic Motor BMR 100 / BMR 160 / BMR 250 / BMR 315

3. Application

Low Speed High Torque Hydraulic Motor BMR Series

1. Fisheries winch

2. Hydraulic Winch Motor

3. hydraulic drive systems of mine construction machinery

4. Agricultural and forest machinery

Professional Low Speed High Torque Hydraulic Motor BMR 100 / BMR 160 / BMR 250 / BMR 315
