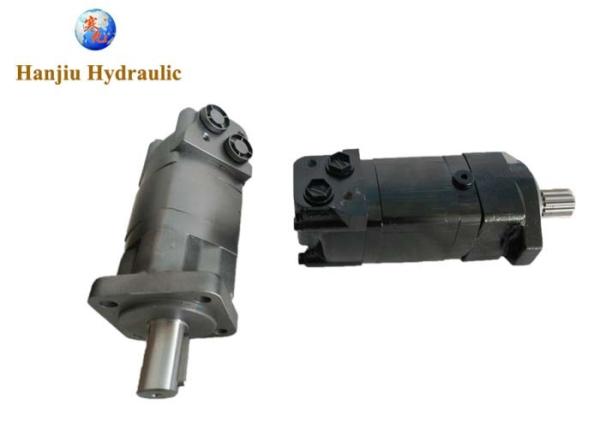

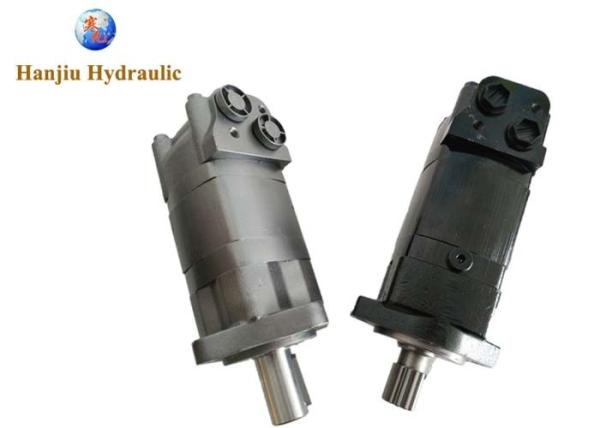

Reliable High Pressure Hydraulic Motor , Gerotor Hydraulic Motor BMS 250 For Machinery
Reliable High Pressure Hydraulic Motor , Gerotor Hydraulic Motor BMS 250 For Machinery
Reliable High Pressure Hydraulic Motor , Gerotor Hydraulic Motor BMS 250 For Machinery
Reliable High Pressure Hydraulic Motor , Gerotor Hydraulic Motor BMS 250 For Machinery
Reliable High Pressure Hydraulic Motor , Gerotor Hydraulic Motor BMS 250 For Machinery
Reliable High Pressure Hydraulic Motor , Gerotor Hydraulic Motor BMS 250 For Machinery
Specifications
Brand Name :
Hanjiu
Model Number :
BMS 250 Orbital motor
Certification :
CE
Place of Origin :
China
MOQ :
50 units
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal .
Supply Ability :
100,000 units / Year
Delivery Time :
10-15 working days
Packaging Details :
Carton packing , with a tray or wooden box if needed .
Product name :
Hydraulic Gear Motors
Max working temperature :
80°
Displacement :
80cc,100cc,125cc,160cc......500cc
Applications :
Agricultural machine, Transportation, Construction equipment, Metallurgical, Marine, etc.
Replacement :
OMS, Eaton 2000 series, M+S MS etc
Max allowable back pressure :
10Mpa
Description

Low Speed High Torque Hydraulic Motor BMS 250 For Construction Machinery

BMS series motor adapt the advanced Gerotor gear set design with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.


Characteristic Features:

* BMS motor is a disc valve type gerolor motor .

* A variety of connection type of flange output shaft and oil port .

* Advanced design of shaft seal which can bear higher pressure .

* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.

* Advanced manufacturing devices for the Gerotor gear set which use low pressure of start-up, provide smooth and reliable operation and high efficiency.

Main Specifications:

Type BMS
BMSE
80		 BMS
BMSE
100		 BMS
BMSE
125		 BMS
BMSE
160		 BMS
BMSE
200		 BMS
BMSE
250		 BMS
BMSE
315		 BMS
BMSE
375
Geometric displacement
(cm3 /rev.)		 80.6 100.8 125 157.2 200 252 314.5 370
Max. speed (rpm) cont. 800 748 600 470 375 300 240 200
int. 988 900 720 560 450 360 280 240
Max. torque (N·m) cont. 190 240 310 316 400 450 560 536
int. 240 300 370 430 466 540 658 645
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11.8
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 17
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 10
int. 21 21 21 21 16 16 14 12
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 14
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Reliable High Pressure Hydraulic Motor , Gerotor Hydraulic Motor BMS 250 For Machinery

Reliable High Pressure Hydraulic Motor , Gerotor Hydraulic Motor BMS 250 For Machinery

Reliable High Pressure Hydraulic Motor , Gerotor Hydraulic Motor BMS 250 For Machinery


MOTOR CROSS REFERENCE TABLE
HANJIU
HYDRAULIC		 M+S
HYDRAULIC		 EATON
CHAR LYNN		 ROSS
TRW		 WHITE
CROSS		 PARKER SAM
BREVINI		 BOSCH
RECROTH
BMM MM MLHK J SERIES OMM BGM MGX
BMP/BM1 MP HP H SERIES OMP DH MF MG WP RS TC TE TB BG MGP GXP
BMR/BM2 MR HR MLHRW,RW S,T SERIES W SERIES OMR DS OMEW MB WR RE TF BR MGR GMR
BMH/BM4 MH MLHH HW HWF OMH ME RE TG
BMS/BM5 MS MSY MLHS 2000 SERIES OMS ME RE TG HPR MGS GMS
BMT/BM6 MT MLHT MTM 6000 SERIES OMT TMT MJ HT MGT,GMT
BMV MV MLHV 10000 SERIES OMV

MGV GMV

Applications :

conveyor drives

winches

agricultural machinery

forest machinery

cranes

sawmill equipment

lifts/elevators.

If you have an existing hydraulic system and you need torque, these hydraulic motors are ideal products. Models such as light series hydraulic motors , heavy series hydraulic motors are available.
