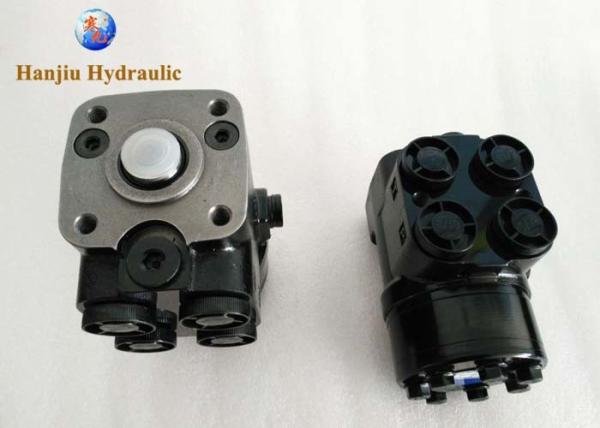

Compact Hydraulic Steering Valve 101S 100 , Convenient Hydraulic Orbital Valve
Compact Hydraulic Steering Valve 101S 100 , Convenient Hydraulic Orbital Valve
Compact Hydraulic Steering Valve 101S 100 , Convenient Hydraulic Orbital Valve
Compact Hydraulic Steering Valve 101S 100 , Convenient Hydraulic Orbital Valve
Compact Hydraulic Steering Valve 101S 100 , Convenient Hydraulic Orbital Valve
Compact Hydraulic Steering Valve 101S 100 , Convenient Hydraulic Orbital Valve
Specifications
Brand Name :
Hanjiu
Model Number :
Orbital Steering Valve 101S
Certification :
CE
Place of Origin :
China
MOQ :
50 units
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal .
Supply Ability :
100,000 units / Year
Delivery Time :
10-15 working days
Packaging Details :
Carton packing , with a tray or wooden box if needed .
Product name :
Hydraulic Steering units
Function :
Open center non-reaction, Open center reaction, Close center non-reaction, Load sensing/ON/OR/CN/LS/5T
Displacement :
50, 80, 100, 125, 160 ......400, 500
Applications :
Walking mechanical steering
Replacement :
OSPC, M+S HKUS
Warranty time :
12 Months
Description

Orbital Steering Valve 101S 100 For Massey Ferguson Tractors MF253 MF360 MF362

Orbital Steering Valve

101S series PSU incorporated the inlet check valve, safety valve, internal check valve, cylinder port shock valve and anti-cavitation valve. The design is more compact and convenient.


Features:


compact and convenient
Low hydraulic noise
Special casting design for low pressure drop.
3 basic systems-open center, closed center and load sensing
Displacement: 50~500 ml/r

Main Specifications:

Parameters Series
101S-*-***-**-*
Function code 1,2,4 1,4
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400
Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 32 40
Max.input pressure(Mpa) 16
Relief Valve Pressure Settings ( MPa) 06,07,08,10,12,14,15,16
Shock Valve Pressure Settings ( MPa) 12,13,14,16,18,20,21,22
Max.cont.back pressure 2.5
Weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176

Compact Hydraulic Steering Valve 101S 100 , Convenient Hydraulic Orbital Valve

Compact Hydraulic Steering Valve 101S 100 , Convenient Hydraulic Orbital Valve

Compact Hydraulic Steering Valve 101S 100 , Convenient Hydraulic Orbital Valve

Applications :

Orbital Steering Valve is widely used in the steering control system

such as the steering system of many kinds of industrial and agricultural

mobile machinery forklift,loader,roadroller,tractor,comebine harvester, etc.

We produce the products match with the OEM number of all machines.
