Specifications
Brand Name :
HANJIU
Model Number :
BMJ-375
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
100 Pieces
Price :
109 usd/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability :
70000 pieces per year
Delivery Time :
45 - 55 work days
Packaging Details :
Box, carton, pallet
Product :
Light Duty Gerotor Motor
Model No. :
BMJ-375
Displacement :
375cc
Flange :
Wheel mount
Shaft :
25.4mm SAE 6B
Port :
G 1/2
Rotation :
Standard
Color :
Black
Manufacturer :
Hanjiu
Brand :
Hanjiu
Description

Turf equipment Light Duty Gerotor Motor, Wheel Motor 375 ml/r, SAE 6B​

Quick review:

Hanjiu BMJ-375 apply to Turf equipment

Also BMJ series with more mounting and shaft apply to Scissors lifts, Boom lifts, mowers, Greens mowers, Sand trap rakes, Railroad maintenance equipment, Industrial sweepers and floor polishers, Skid steer attachments and many more.

Specification:

- Displacement: 375cc
- Flange :wheel Ø60.3*7mm
- Shaft: key 25.4 mm SAE 6B
- Ports: G 1/2

- Drain port: G 1/4

Turf Equipment Light Duty Gerotor Motor, Wheel Motor 375 Ml/R SAE 6B

Specification:

Type BMJ BMJ BMJ BMJ BMJ BMJ BMJ BMJ BMJ BMJ BMJ
65 80 100 125 160 200 230 250 295 315 375
Displacement (cm3/rev.) 66.8 81.3 101.6 127 157.2 193.6 226 257 287.8 314.5 370
Max. speed (rpm) cont. 667 543 439 350 283 229 247 216 196 178 152
int. 842 689 553 441 355 289 328 287 254 235 199
Max. torque (N• m) cont. 126 157 191 245 307 382 378 381 393 448 439
int. 176 215 268 335 422 520 528 543 547 587 613
Max. output (kW) cont. 8.3 8.8 7.9 8.9 8.9 9 9.9 9.3 8.7 8 7.6
int. 13.9 14.4 13.5 14.1 15.6 15.7 17.9 16.5 15.6 14.3 14
Max.pressure drop (MPa) cont. 14 14 14 14 14 14 12 11 10 10 9
int. 19 19 19 19 19 19 16.5 15.5 14.5 13.5 12.5
peak 20 20 20 20 20 20 18 18 17 16 16
Max. flow (L/min) cont. 45 45 45 45 45 45 57 57 57 57 57
int. 57 57 57 57 57 57 75 75 75 75 75

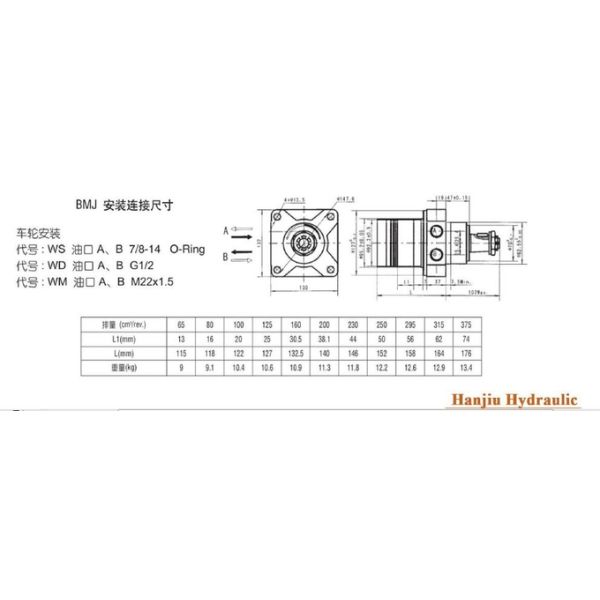

Dimentions:

Turf Equipment Light Duty Gerotor Motor, Wheel Motor 375 Ml/R SAE 6B

More hydraulic motors available:

Turf Equipment Light Duty Gerotor Motor, Wheel Motor 375 Ml/R SAE 6B

About Hanjiu:

Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
