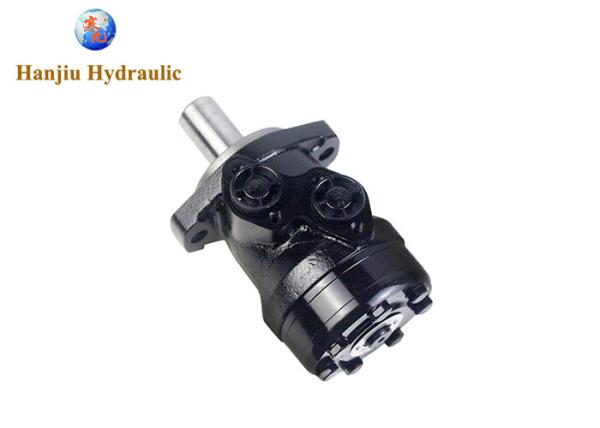

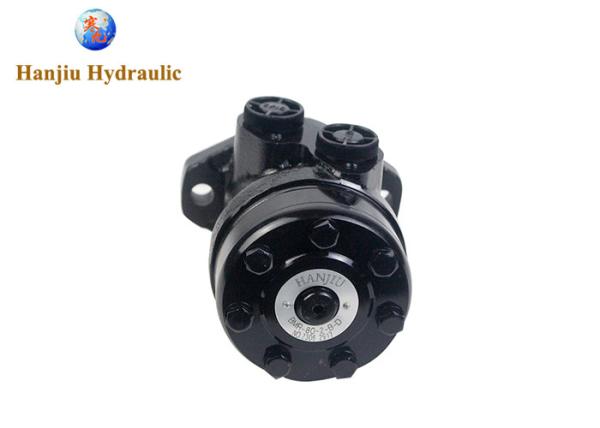

Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port
Specifications
Brand Name :
Hanjiu
Model Number :
BMR-80-2-B-D-B
Certification :
ISO9001
Place of Origin :
China
MOQ :
100 units
Price :
42 usd/pc
Payment Terms :
T/T
Supply Ability :
100,000 units / Year
Delivery Time :
25 - 35 working days
Packaging Details :
Standard export package
Item :
Orbit Hydraulic Motor
Model No. :
BMR-80-2-B-D-B
Displacement :
80 ml/r
Flange :
2 bolt
Shaft :
32mm
Port :
G 1/2
Rotation :
Left and Right
Speed :
750 / 940 rpm
Torque :
195 / 220 / 270 Nm
Flow :
60 / 75 lpm
Description

Quick Review:

BMR Series Orbit Hydraulic Motors,

80ml/r,

SAE 2 bolt,

32mm shaft,

1/2 BSPP port

Features:

This motor can replace Danfoss OMR, M+S MR, Eaton Charlynn H,S,T series

Specification:

Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

Technical data for BMR with 31.75 and 32 shaft:
Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1250 960 750 600 475 378 310 240 190 155
int. 1520 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 380 450 540 550 580
int. 83 126 220 280 340 430 500 610 690 690
peak 105 165 270 320 370 460 560 710 840 830
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 11 10 9 7.5
int. 9.8 11.2 15 15 14.5 14 13 12 10 9
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 17.5 17.5 17.5 13.5 11.5
int. 16.5 17.5 20 20 20 20 20 20 17.5 15
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 21 17.5
Max. flow (L/min) cont. 45 50 60 60 60 60 60 60 60 60
int. 55 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port

Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port

Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port

Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port

Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port

More Hydraulic Orbital Motor available:

Bmr Series Orbit Hydraulic Motors 80ml/R Sae 2 Bolt 32mm Shaft 1/2 Bspp Port






About Hanjiu:

From China, HANJIU technology design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use our hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
