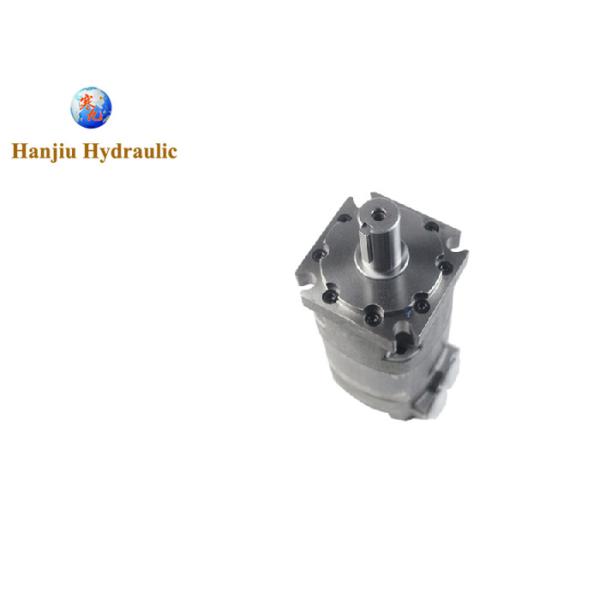

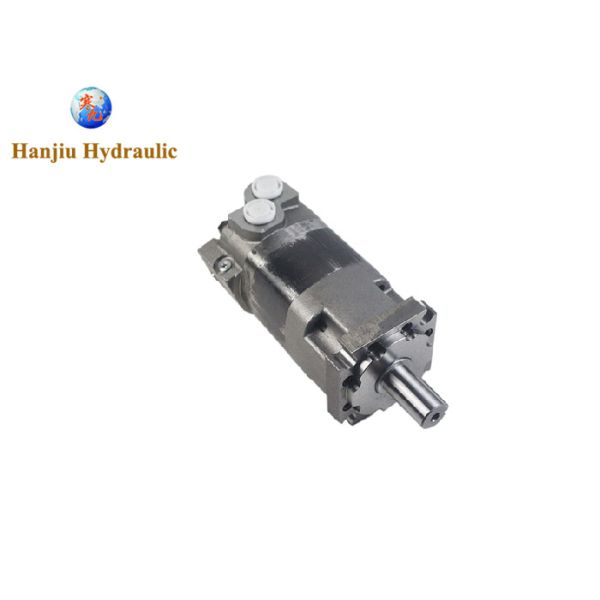

Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type
Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type
Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type
Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type
Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type
Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type
Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type
Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type
Specifications
Brand Name :
HANJIU
Model Number :
4000 series
Certification :
ISO 2015:9001
Place of Origin :
CHINA
MOQ :
1 Sets
Price :
Start from 500 usd
Payment Terms :
L/C, T/T, Western Union, Western Union
Supply Ability :
300000 sets per year
Delivery Time :
15 - 45 work days
Packaging Details :
Carton, Box, Pallets
Item :
Disc Geroler motors
Model :
4000 series
Direction of rotation :
clockwise
Fastening :
4 Bolts standard type
shaft :
31.75mm key shaft
charlynn code :
109-1492-006
Description

eaton hydraulic pump motor 109-1492-006 aftermarket disc geroler motor standard type

Hanjiu technology supply the replacement charlynn motor BMK4 series motor

same specification and performance with Charlynn 4k motor
the type code is 109-1492-006,109-1492-aft
Product details:
Application: Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products
Brake type: Hydraulic
flow options: .4375-20 UNF-2B SAE O-Ring Port With Check Valve
Displacement: 492.6 cubic centimetre per revolution
Flow rate12: 95 litre per minute
Front seal kit if available: 61232-000
Geroler options: Standard
Description: Low-Speed Gerotor/Geroler
Identification: None
Intermittent pressure: 170 bar
Low pressure relief: None
Maximum speed: 191 revolutions per minute
Model Code: M04301AB01AB0200000000000AA00F
Mounting Type: Standard, 4 Bolt; 101.60 [4.000] Pilot Dia. 14.7 [.58] Slots On 127.00 [5.000] Dia. Bolt Circle. (SAE B)
Output shaft type: Straight
Paint: Primer Low Gloss Black
Port type: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
Pressure flow option: None
Product height: 4.72
Product height uom: inch
Product length: 12.87
Product length uom: inch
Product material: Cast Iron
Product trade name: 4000 Series
Product weight: 48.00
Product weight uom: pound
Product width: 4.72
Product width uom: inch
Recommended system working temperature: -34°C to 82°C
Seal options: Standard
Shaft options: None
Special assembly instructions: None
Special features hardware: None
Speed sensor: No
Sub brand: HANJIU
Torque: 945 newton metre
Two speed ratio: None
Valve options: None
Viscosity recommendation: 70 Saybold universal second

Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard TypeEaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type

Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type

Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type

Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type

Eaton Hydraulic Pump Motor 109-1492-006 Aftermarket Disc Geroler Motor Standard Type

From China, HANJIU technology design, develop and manufacture hydraulic orbital motors. Shipped to all over the world, customers use our hydraulic motors directly as compatible motors for Danfoss, M+S, Eaton, Parker, White, Dana Brevini. Obtain the maximum benefit with the minimum cost, and you have no risk in cooperating with us. If you are hydraulic motor importer, wholesaler, OEM factory, contact us to discuss cooperation and get big customer discount.
